Name: Container Type Ball Mill Grinding Plant
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-623
Price: 76,500.00 USD
Availability: InStock

Home > products > Grinding Ball Mill >

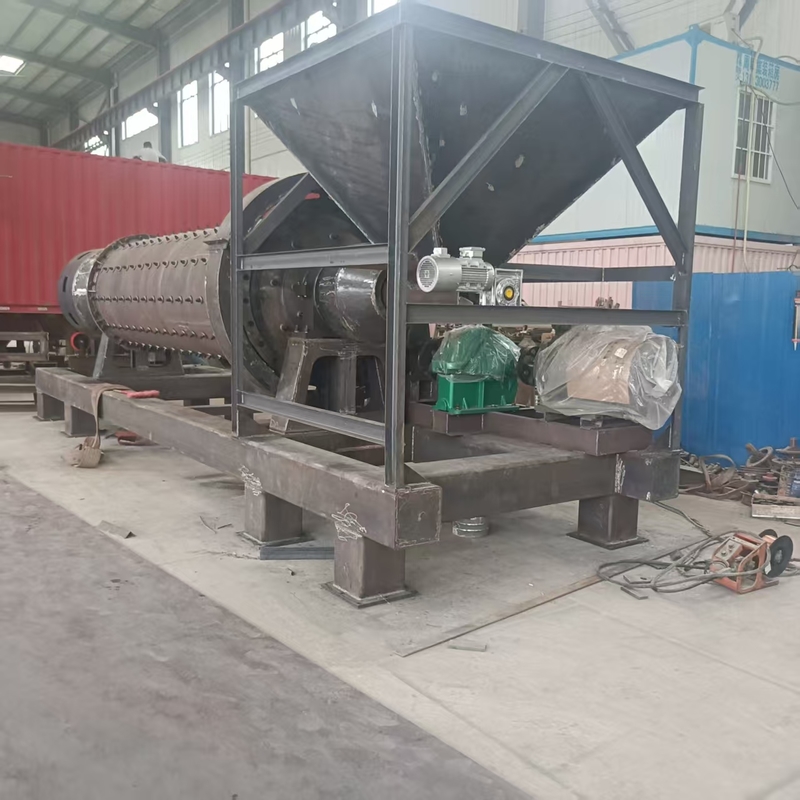

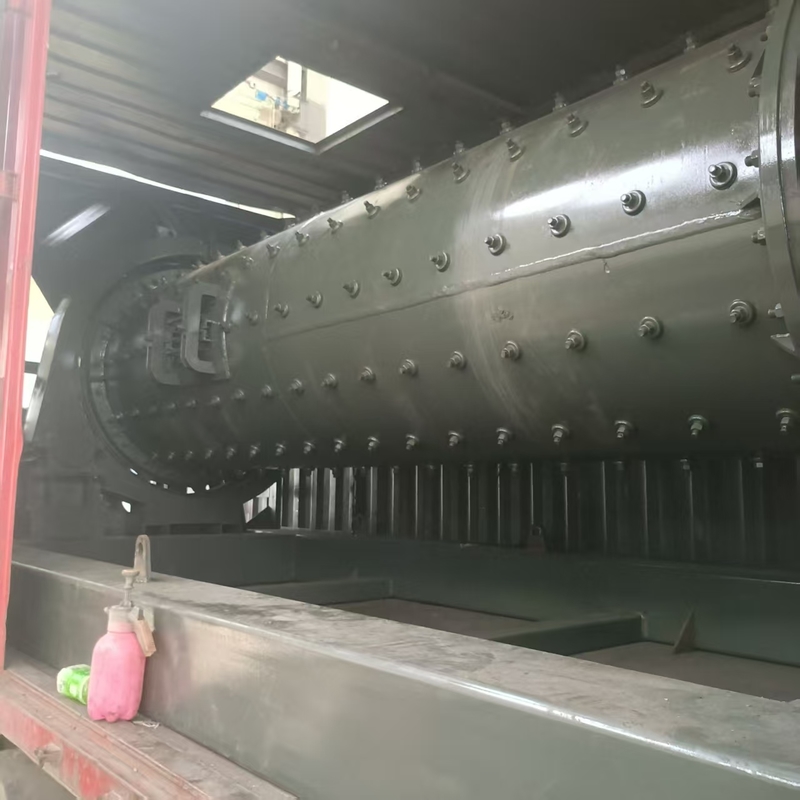

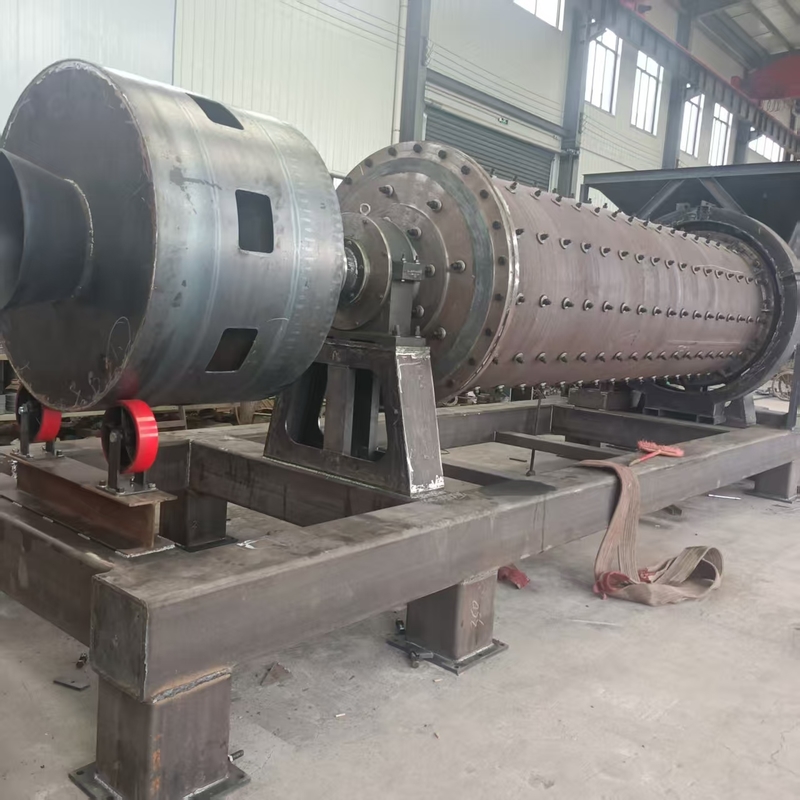

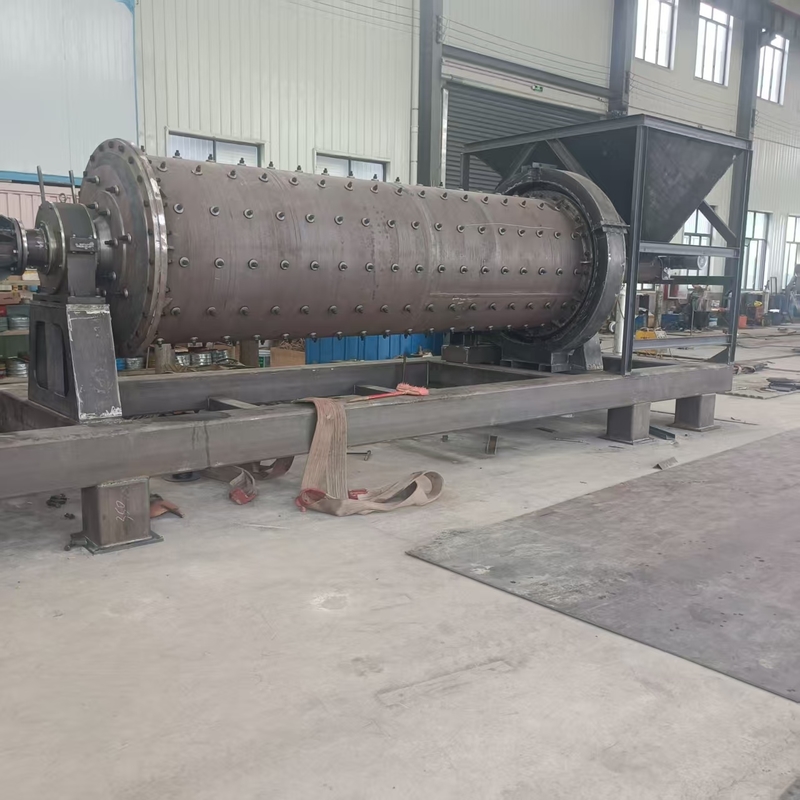

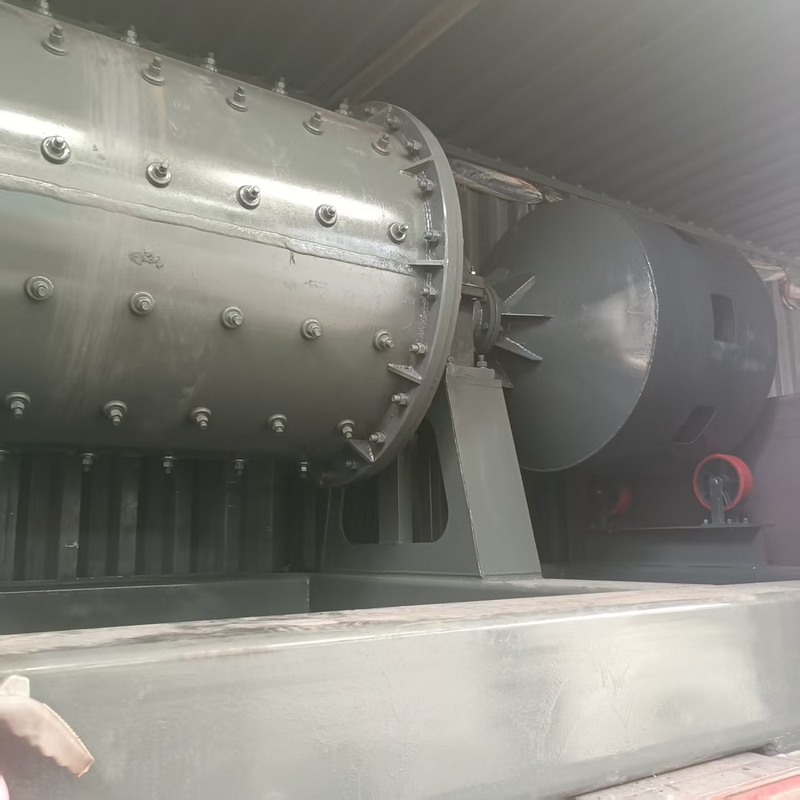

Container Type Ball Mill Grinding Plant

container ball mill grinding plant

ball mill grinding equipment

industrial ball mill with warranty

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-623

Request A Quote

Product Details

Name:

Container Type Ball Mill

Capacity:

0.5-20t/h

Color:

Grey

OEM:

Payment & Shipping Terms

Minimum Order Quantity

Price

3000-150000

Packaging Details

negociated

Delivery Time

20-40 days

Payment Terms

T/T

Supply Ability

270 sets/month

Ball mills are versatile and widely used pieces of equipment that serve critical functions across many industries, including mining, cement production, pharmaceuticals, and materials science. They are available in a wide range of sizes, from small benchtop models ideal for laboratory-scale experiments to large industrial installations capable of high-capacity processing.

A ball mill is a mechanical device designed to reduce the size of solid particles by crushing and grinding them between specially made hard balls inside a rotating cylinder. There are a number of variations of ball mills--some are small laboratory mills for making powdered samples, while others are large industrial mills for the size reduction of mined ore. A ball mill can either rotate around a horizontal axis (more common for large, continuous machines) or a vertical axis (more common for batch, lab-scale units).

Technical Details

Size	Inside dia. Length of shell (mm)	Ball charging amount (tons)	Mill revolution (min-1)	Power consumption (kW)	Motor output (kW)	Capacity (t/h)
A B	1212 1515	1200×1200 1500×1500	2.05 4.15	32.0 29.0	16.5 35.8	18.5 37	1.5 3.5	1.3 3.1
1818 2121	1800×1800 2100×2100	7.4 11.7	25.3 23.0	65.3 106	75 110	6.6 11.0	5.8 9.6
2424 2430	2400×2400 2400×3000	17.6 22.0	21.4 21.4	167 209	190 220	18.0 22.4	15.8 19.6
2727 2733	2700×2700 2700×3300	25.4 31.0	20.1 20.1	250 306	260 340	27.5 33.7	24.1 29.6

Tags：

Container Type Ball Mill Grinding Plant

container ball mill grinding plant

ball mill grinding equipment

industrial ball mill with warranty

FLY Ash Processing Plant

Ball Grinding Mill

Roller Grinding Mill

Air Jet Mills

ball mill grinder

Batch Ball Mill

industrial ball mill

Attribute	Value
Name	container type ball mill
Capacity	0.5-20t/h
Color	Grey
OEM	Accept
