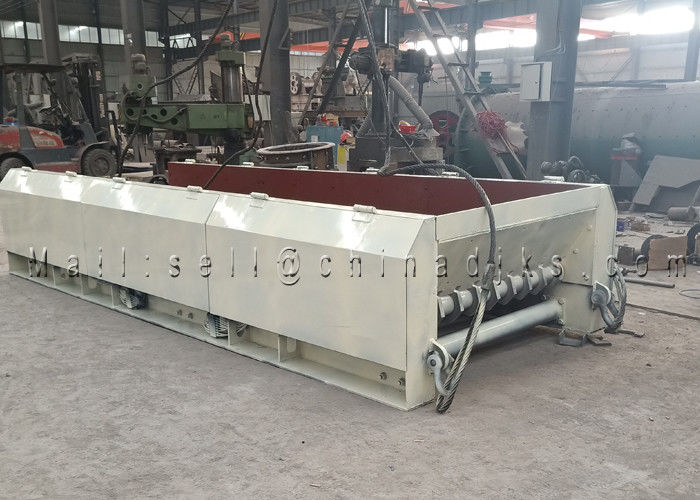

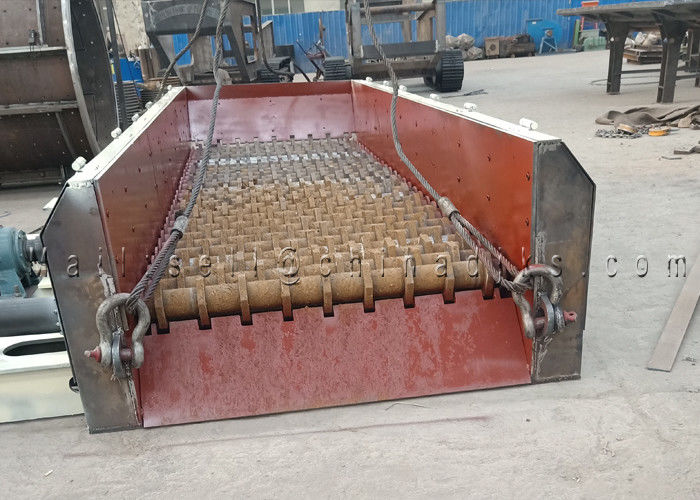

ClayStone or Mud Rock Separator for Construction and Mining
A claystone is lithified and nonfissile mudrock. In order to be considered a claystone, it must consist of up to 50% clay, which measures < 1/256 of a millimeter in particle size. Clay minerals are integral to mudrocks, and represent the first or second most abundant constituent by volume, as there are 35 recognized clay mineral species on earth. Clay by far is the smallest of particles recognized. Most materials in nature are clay minerals, but quartz, feldspar, iron oxides, and carbonates can weather to sizes of a typical clay mineral.
Hengyang Industry mainly uses ClayStone or Mud Rock Separator for separating stone and debris, and than use for construction or mining. This machine also suitable for separating stone and mud, stone and other debris.
ClayStone or Mud Rock Separator Technical Details:
| Model | 0835 | 1040 | 1240 | 1445 | 1645 | 1850 | 2050 |
| Slope (°) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Sieves Width | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Practical Width (m) | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 175 | 2 |
| Length (m) | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Power (kw) | 7.5*4 | 11*4 | 15*4 | 15*4 | 18.5*4 | 22*4 | 30*4 |
| Capacity (t/h) | 60-100 | 100-150 | 150-200 | 200-300 | 300-400 | 400-600 | 600-800 |
| Layer | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Rotation Speed (r/min) | 0-180r/min (frequency control) | ||||||
| Blade shape | Triangle type, butterfly type, teeth shape, Octagonal | ||||||
| Assist air | Frequency control Blower | ||||||
| Oil Station | Provide power | ||||||
ClayStone or Mud Rock Separator Raw mterial and final Product:
| Raw Material | Raw Material |
|
|
| Final Separated Stones | Final Mud |
|
|
