Limestone Crushing Process Line CaCO3 Processing

Hengyang Industry can help you produce and install whole plant of Calcium carbonate plant:

Calcium carbonate Crushing Plant

Calcium carbonate Drying Plant

Calcium carbonate Calcination Plant

Calcium carbonate Packing and Grinding Production Lines

Non-metallic Mining Processing Lines.pdf

Limestone, which is primarily calcium carbonate, is a sedimentary rock made from the minerals calcite or aragonite. A large portion of limestone is made from the skeletal remains of sea creatures and organisms. Ground Calcium Carbonate (GCC) differs from Precipitated Calcium Carbonate (PCC) in that the GCC is formed directly from grinding limestone rock into a powder, while PCC is chemically produced and precipitated out as powder.

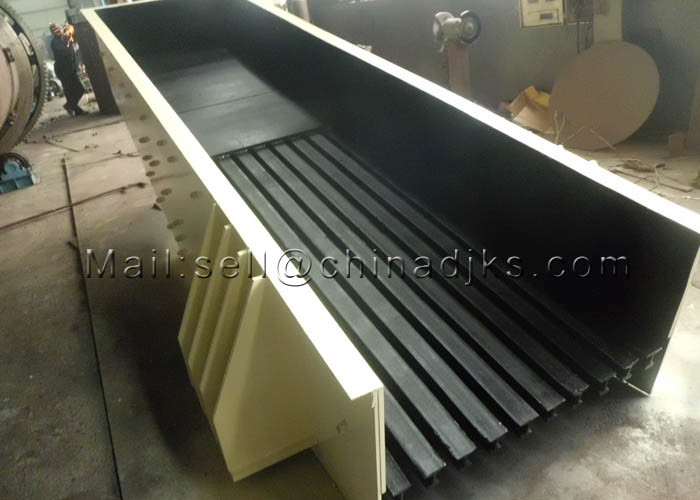

Quarried stone normally is delivered to the processing plant by truck and is dumped into a bin. The feeder or screens separate large boulders from finer rocks that do not require primary crushing, thus reducing the load to the primary crusher.

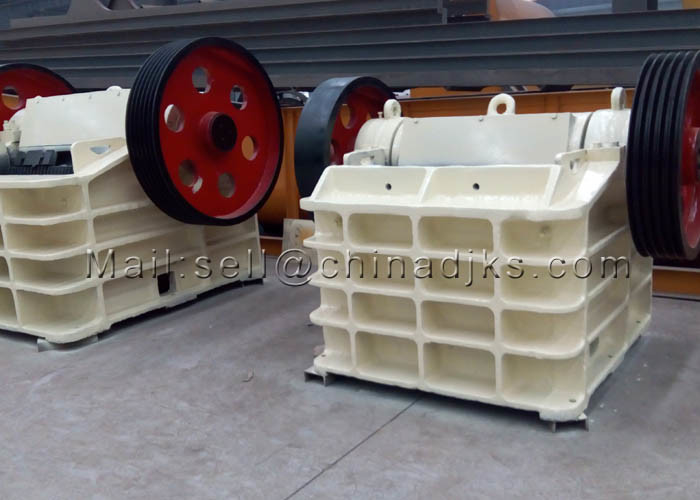

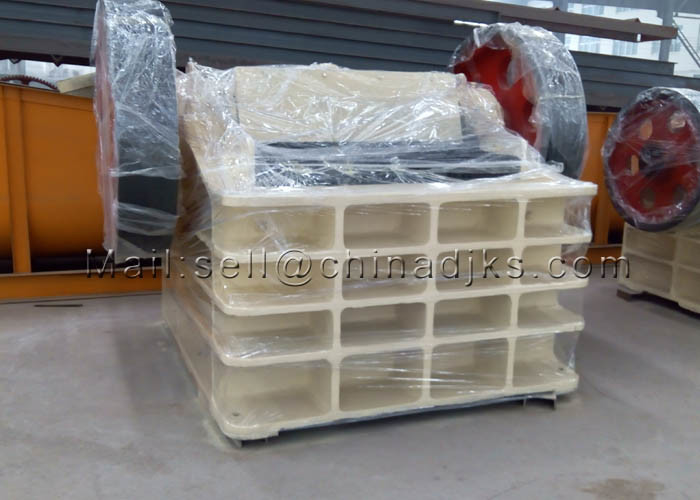

Jaw, impactor, or gyratory crushers are usually used for initial reduction. The crusher product, normally 7.5 to 30 centimeters (3 to 12 inches) in diameter, and the grizzly throughs (undersize material) are discharged onto a belt conveyor and usually are conveyed to a surge pile for temporary storage or are sold as coarse aggregates. The stone from the surge pile is conveyed to a vibrating inclined screen called the scalping screen. This unit separates oversized rock from the smaller stone. The undersized material from the scalping screen is considered to be a product stream and is transported to a storage pile and sold as base material.

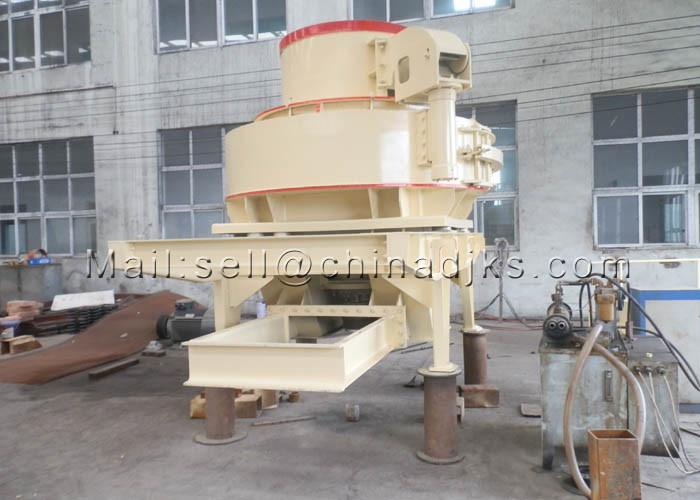

The stone that is too large to pass through the top deck of the scalping screen is processed in the secondary crusher. Cone crushers are commonly used for secondary crushing (although impact crushers are sometimes used), which typically reduces material to about 2.5 to 10 centimeters (1 to 4 inches). The material (throughs) from the second level of the screen bypasses the secondary crusher because it is sufficiently small for the last crushing step. The output from the secondary crusher and the throughs from the secondary screen are transported by conveyor to the tertiary circuit, which includes a sizing screen and a tertiary crusher. Tertiary crushing is usually performed using cone crushers or other types of impactor crushers. Oversize material from the top deck of the sizing screen is fed to the tertiary crusher. The tertiary crusher output, which is typically about 0.50 to 2.5 centimeters (3/16th to 1 inch), is returned to the sizing screen.

Various product streams with different size gradations are separated in the screening operation. The products are conveyed or trucked directly to finished product bins, to open area stock piles, or to other processing systems such as washing, air separators, and screens and classifiers (for the production of manufactured sand).
