Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYC027

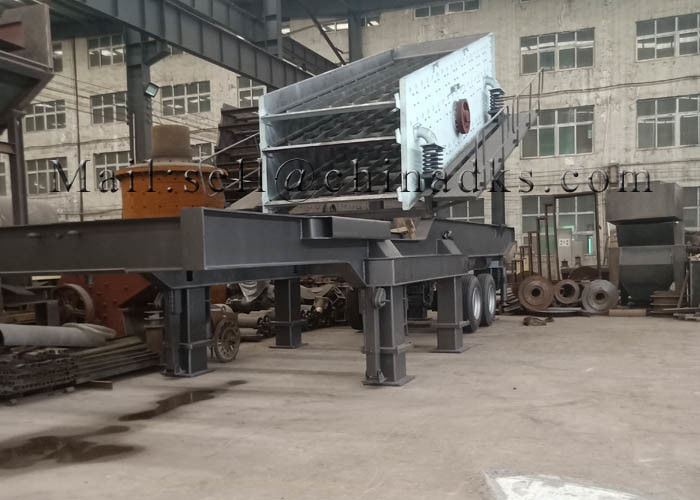

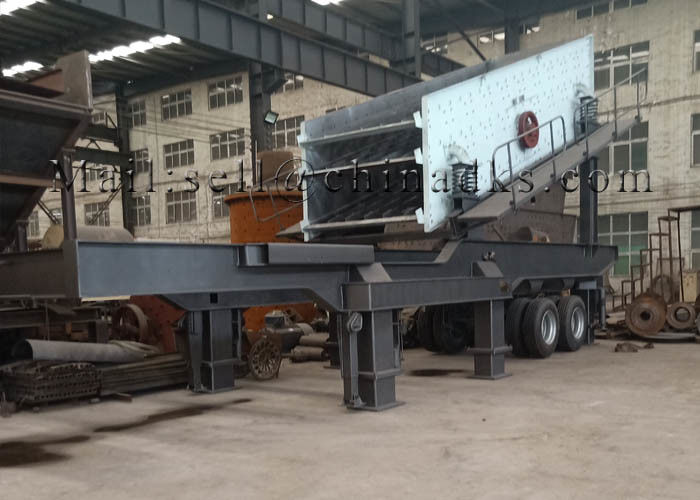

Mobile Screening Station for Stone Crushing Line
Mobile Screening Station working for mobile jaw crushing plant, crawler mobile impact crushing plant, tracked mobile cone crushing plant and crawler screening mobile crushing station series.
Mobile Screening Station features:
The different models of hydraulic drive tire screening station joint drive with different models of advanced design Several Later separator. Co-working with crushing station, making sure whole crushing and separating process.
Mobile Screening Station structure advantage:
1. With the high performance of the screening box;
2. Automated screening exercise and regulation, maximum screening efficiency;
3. Strict management of all operating units, improve product life and reliability;
4. Low noise and low emissions characteristics.
Mobile Screening Station Technical Details:
| HY-S Series | HY 152 | HY 153 | HY 181 |
| Screen box specifications(mm×mm) | 1500×4500 | 1500×6100 | 1800×4800 |
| Layers | 2-3 | 2-3 | 2-4 |
| Power plant | |||
| Engine | Cummins or CAT | Cummins or CAT | Cummins or CAT |
| Power(kw) | 110 | 138 | 110 |
| Hopper | |||
| Hopper volume(m3) | 5 | 8 | 10 |
| Tire device | |||
| Driven approach | Hydraulic pressure | Hydraulic pressure | Hydraulic pressure |
| Overall dimensions and weight | |||
| Overall dimensions of work status | |||
| Length(mm) | 16457 | 19800 | 16539 |
| Width(mm) | 14282 | 17800 | 14327 |
| heigth(mm) | 4199 | 7300 | 4238 |
| Transport state Overall dimensions | |||
| Length(mm) | 14840 | 19500 | 15130 |
| Width(mm) | 2861 | 3300 | 3245 |
| heigth(mm) | 3461 | 3500 | 3574 |
| Weight(t) | 26 | 39 | 29 |
