Name: Plastic Mill
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-633
Price: 76,500.00 USD
Availability: InStock

Home > products > Mineral Processing Plant >

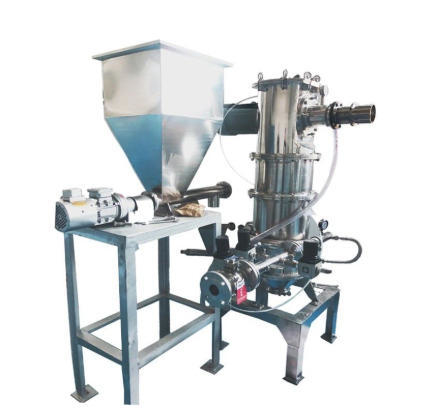

Plastic Mill

plastic mill for mineral processing

industrial plastic grinding mill

mineral processing plant plastic mill

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-633

Request A Quote

Product Details

Name:

Plastic Mill

Materials:

SS Steel

Condition:

New

OEM:

Application:

Materials Grinding

Payment & Shipping Terms

Minimum Order Quantity

Price

3000-150000

Packaging Details

negociated

Delivery Time

20-40 days

Payment Terms

T/T

Supply Ability

270 sets/month

Turbine Classifier-superfine Classification Equipment

Get Best Price

Grinding Machine

Get Best Price

86-371-56611369

Contact Now

Product Description

Working Principle

MKL-CFB Plastic mill forms a complete set of crushing system with an air compressor, cyclone separator, dust collector and induced draft fan. After being filtered and dried, the compressed air is sprayed at high speed through the De Laval Nozzle into the crushing chamber, where the materials are crushed by repeatedly colliding, grinding and shearing at the intersection of multiple high-pressure air streams. Later the crushed materials move with the rising air stream to the grading area under the force of the fan, where the strong centrifugal force generated by the high-speed rotating grading turbine separates the coarse and fine materials. The fine particles that meet the particle size requirements pass through the grading wheel and are collected in the cyclone separator and dust collector, while the coarse particles descend to the crushing area for further crushing, so that the crushed powder reaches a micron or submicron state.

Grinding equipment Models and Parameters

Models / Parameters	MKL-CFB350	MKL-CFB450	MKL-CFB650
Air Consumption (m3/min)	6.5—10.0	12.0—18.0	28—42
Production Capacity(kg/h)	250	500	1200
Product Particle Size(μm)	0.5-8.0	0.5-8.0	0.5-8.0
System Power (KW)	110	180	320
Crushing Pressure (MPa)	0.65—1.0	0.65—1.0	0.65—1.0
Mass of Main Machine, kg	270	530	1050
Size of Main Machine, mm	920×850×1620	1190×1150×2030	1420×1300×2825

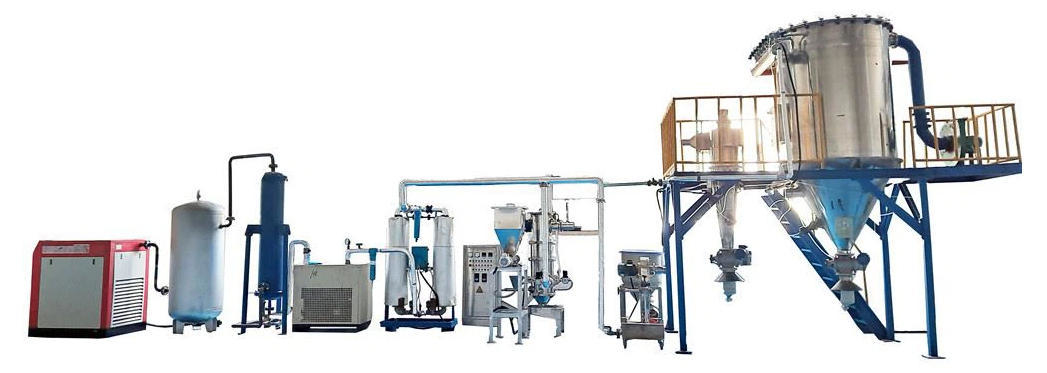

Complete set diagram:
