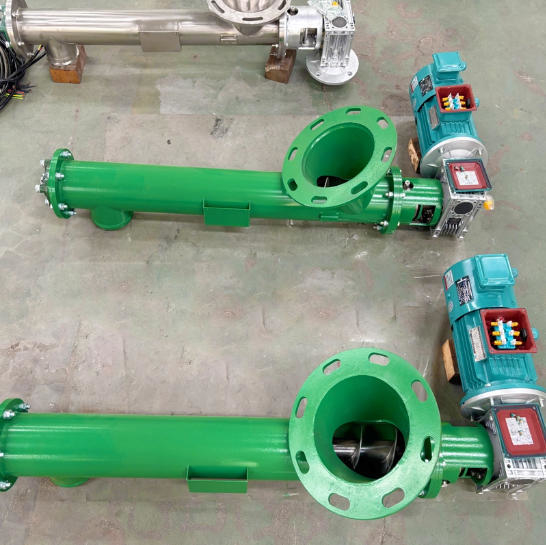

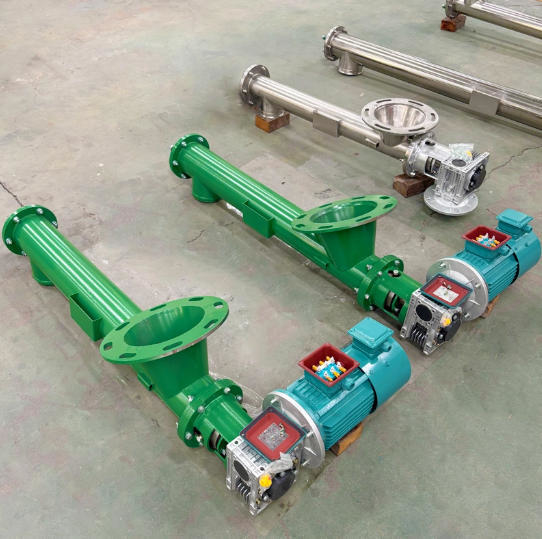

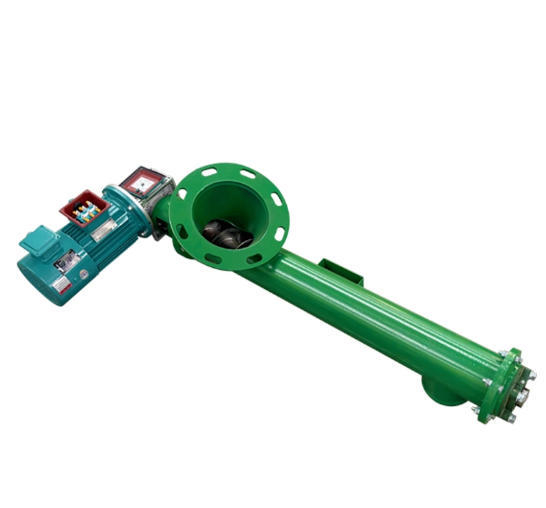

Stainless Steel Spiral Conveyor 133mm for Cement Dry Powder

The screw conveyor is a continuous conveying system that utilizes rotating spiral blades to transport materials along the axial direction of the casing. This versatile equipment can handle horizontal, inclined, or vertical material transfer, making it ideal for powdery, granular, or small block materials. Note: Not suitable for materials prone to deterioration, high viscosity, or agglomeration.

The screw conveyor operates through friction and thrust between rotating spiral blades and materials. When the driving mechanism rotates the screw shaft and attached blades, they generate axial thrust on materials. Due to gravity and casing friction, materials move forward along the casing axis without rotating with the blades, achieving continuous transportation through this "screw pushing" mechanism.

• Compact design: Minimal components (spiral blades, casing, driving device) with small footprint for space-efficient installation
• Superior sealing: Closed casing prevents material scattering, dust generation, and foreign contamination
• Versatile orientation: Supports horizontal, inclined, and vertical material transportation configurations
• Low maintenance: Stable operation with simple controls, minimal upkeep, and easy automation integration
• Wide material compatibility: Handles powders, granules, and small blocks across industries including grain, mining, construction, and chemicals
• High efficiency: Continuous operation meets large-scale production demands with smooth process integration

Contact us for additional model specifications and customization options.

1. Material transfer from ribbon mixer to horizontal screw conveyor
2. Horizontal conveyor with 3 outlets (each equipped with butterfly valves) for controlled bulk bag filling
3. Optional platform integration with weighing sensors for precise measurement
