Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: TTS series
Price: 33,850.00 USD
Availability: InStock

Home > Products > Stone & Sand Washing Line >

Metal Rotary Drum Screen

Rotary Drum Screen

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

TTS series

Request A Quote

Product Details

Color:

Customize

Application:

Washing And Separating

Material:

Steel

Capacity:

50-400t/h

OEM:

Payment & Shipping Terms

Minimum Order Quantity

Price

12000-55700USD/set

Packaging Details

Negociated

Delivery Time

15-20 days

Payment Terms

T/T

Supply Ability

300 sets/month

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Get Best Price

Customize PU Spiral Sand Washing Machinery

Get Best Price

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Get Best Price

Insutrial Use Rotary Screen Capacity 1-250t/h

Get Best Price

Contact Now

Product Description

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

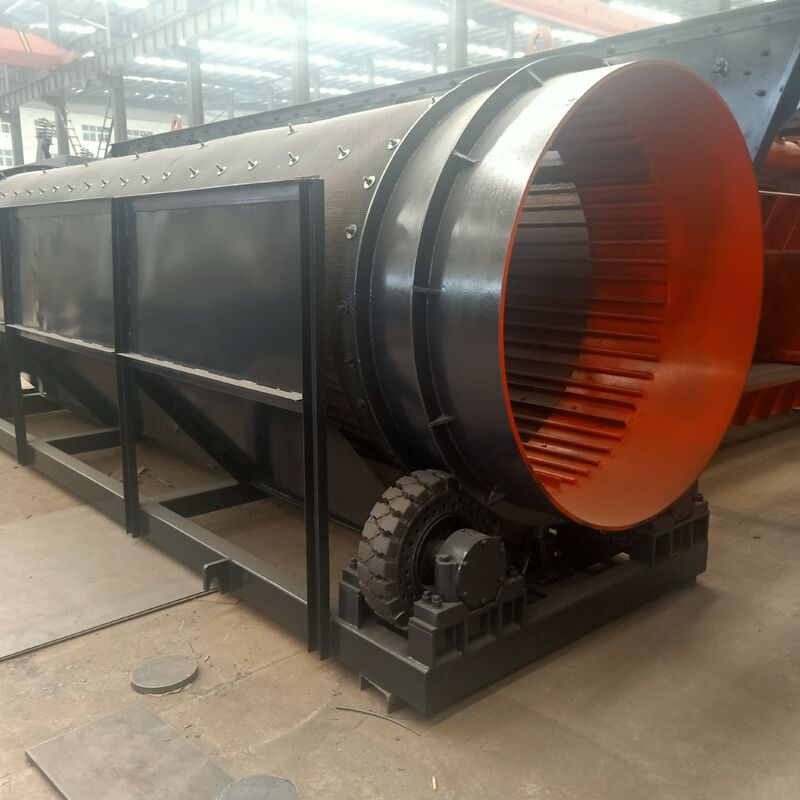

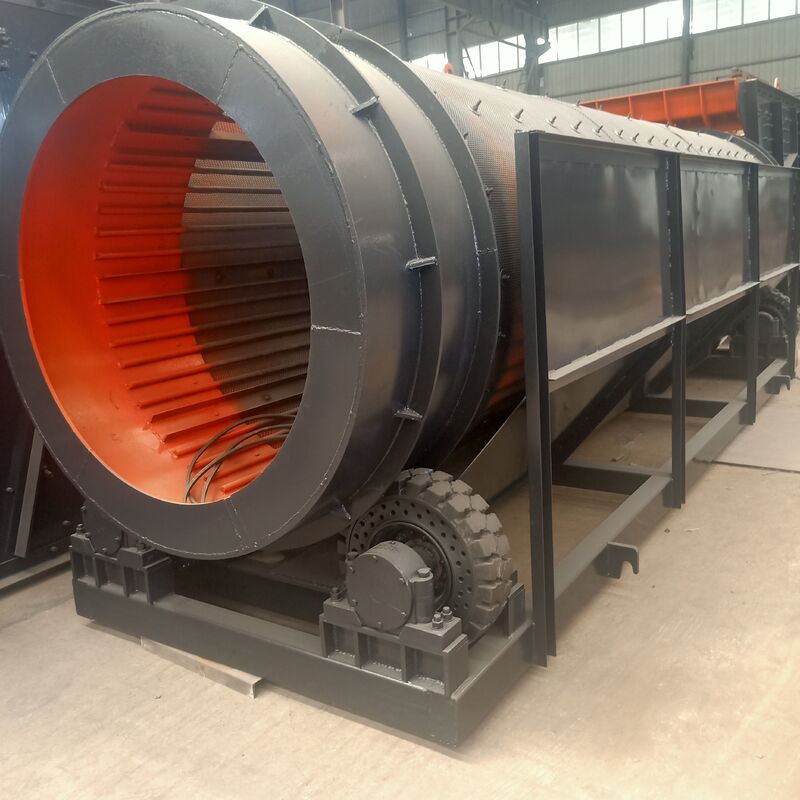

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11
