Name: Gold Cip Production Line
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Gold mining
Price: 65,350.00 USD
Availability: InStock

Home > Products > Metallurgy Processing Line >

Gold Cip Production Line

gold CIP processing plant

metallurgy gold extraction line

CIP gold recovery system

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

Gold mining

Request A Quote

Product Details

OEM:

Condition:

New

Warranty:

12 Months

Application:

Rock Gold

Usage:

Mineral Mining

Payment & Shipping Terms

Minimum Order Quantity

Price

35000-95700USD/set

Packaging Details

Negociated

Delivery Time

25-40 days

Payment Terms

T/T

Supply Ability

30sets/month

Gold Processing Leaching CIL Plant

Get Best Price

Rock Gold Ore Gravity Separation Processing Plant

Get Best Price

Gold Cip Production Line

Get Best Price

Contact Now

Product Description

We deliver more than just machinery; we provide a comprehensive, worry-free gold recovery solution from feed to final product. Based on the proven and efficient CIP (Carbon-in-Pulp) / CIL (Carbon-in-Leach) process, this 500-ton per day plant is engineered for large-scale operations, ensuring stable, high-yield, and effortless performance for our clients worldwide.

Working Principle: Maximizing Recovery Through Engineered Efficiency

The core of our plant lies in the "adsorption" and "elution" process. After fine grinding and cyanidation, the gold-bearing slurry flows through our optimized series of adsorption tanks. Here, activated carbon acts as the "gold hunter," efficiently capturing the gold-cyanide complex. The loaded carbon is then transferred to the elution and electro-winning system, where gold is stripped and deposited as high-purity sludge, ready for smelting into gold bars.

Recovery Rate: > 95%

Investment Return: 6-10months

A. Crushing and Screening
Raw ore is fed into a vibrating feeder and then crushed by a jaw crusher.

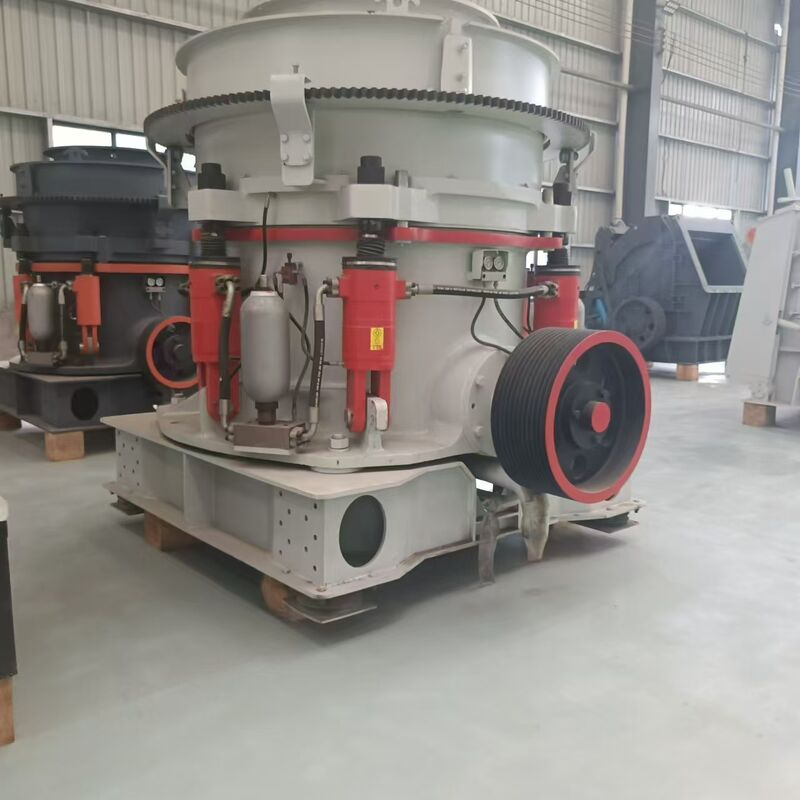

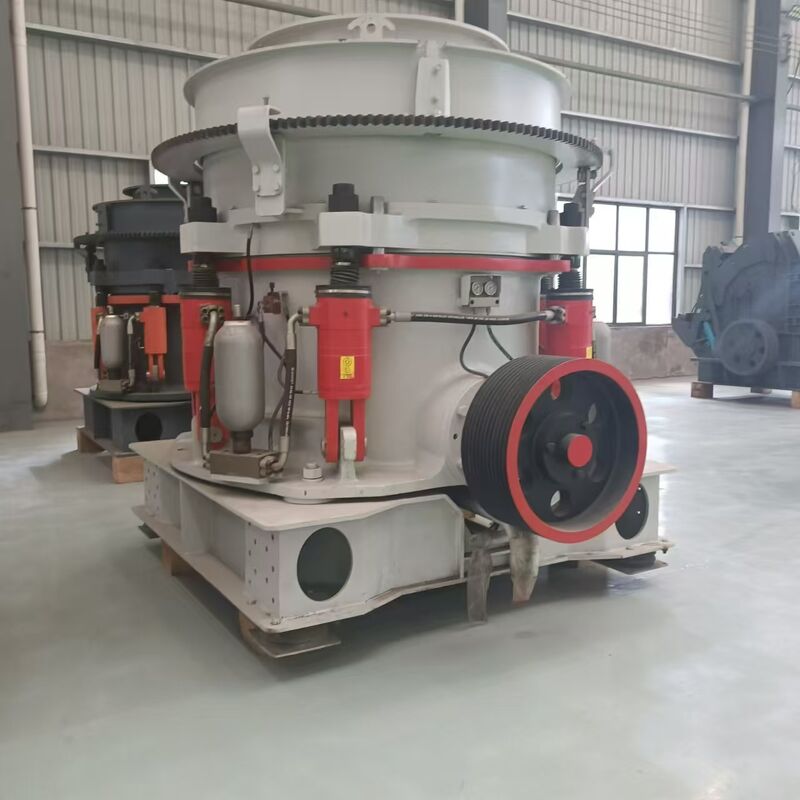

The crushed ore is further processed by cone crushers (coarse and fine crushing).
After crushing, the ore is screened, and oversize materials are returned to the crushers in a closed-circuit system.
B. Leaching and Adsorption
The slurry enters 8 leaching tanks. Sodium cyanide is added in the first tank, and activated carbon is added from the second to the eighth tank.
Gold is adsorbed by carbon through a counter-current flow system. Gold-loaded carbon is separated, cleaned, and sent to the desorption & electrolysis system.
C. Tailings Water Treatment
Tailings slurry is pumped to a filter press for solid-liquid separation.
* Solid tailings are discharged and transported to the yard
* Water is recycled back into the system
D. Gold-Loaded Carbon Treatment
Gold-loaded carbon is processed by desorption & electrolysis to produce gold dust.
The gold dust is smelted into gold bars in a melting furnace.
