Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-013

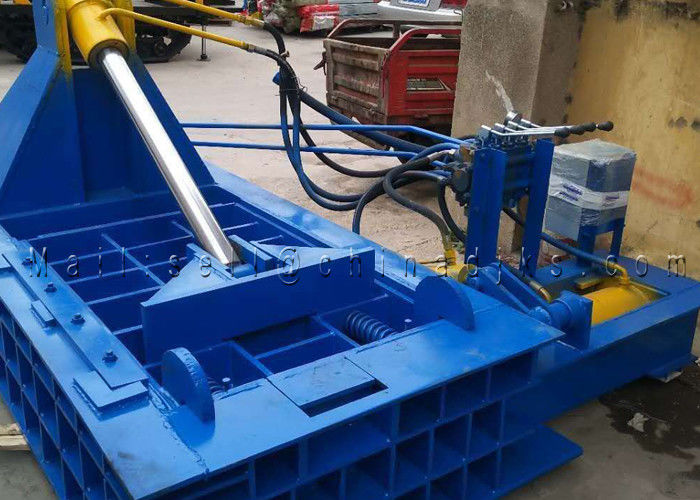

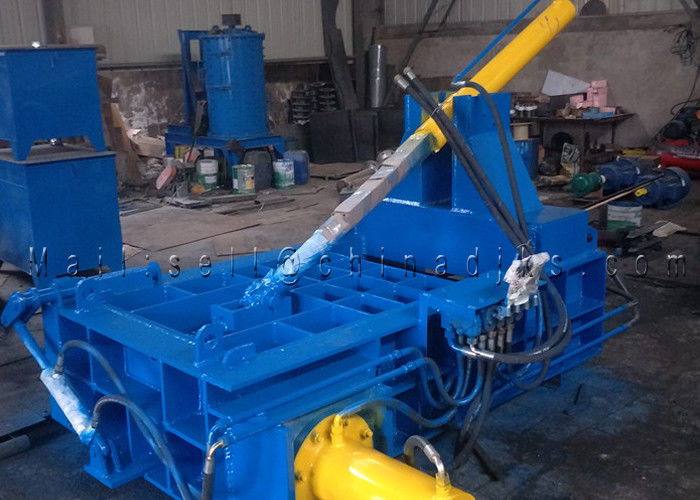

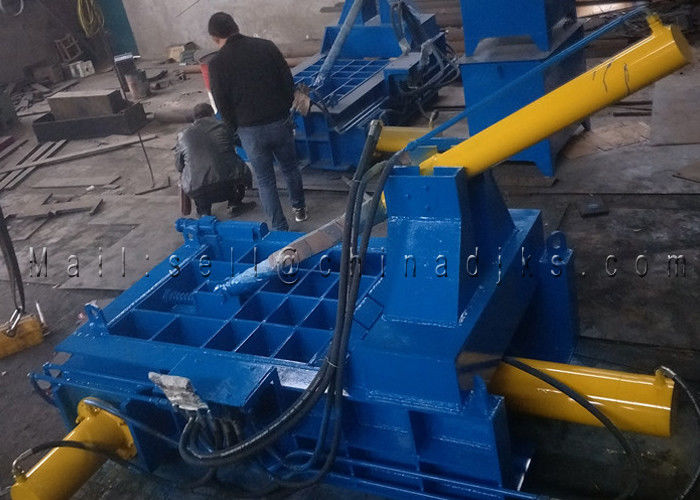

Hydraulic Metal Balers for waste sorting plant
Hydraulic Metal Balers are applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Hydraulic Metal Balers Features:
1.Hydraulic metal baler
2.Hydraulic drive ,manual valve operation or PLC control
3.Bale-discharging :turn-out ,push-out, forward-out
4.Waste metal baler machine
5.Metal press baler machine
Hydraulic Metal Balers Working Princples:
Hydraulic Metal Balers can cold compresses waste automatic shells ,waste buckets ,waste copper and
aluminum into rectangle lumps .The package is discharged from the front and secondary compression is applied. The operation efficiency is high and lump lengths are identical and uniform .The hydraulic system applies an integrate valve block and the product is stable and reliable in technical performance .
Hydraulic Metal Balers Technical Details:
Model |
Pressure (KN) |
Dimesion (L*W*H) (mm) |
Baie size(W*H) (MM) |
Density |
(mm) |
time(sec) |
Power (kw) |
| HY85-63 | 630 | 1000*600*500 | (180~250)*190*190 | over1800 | 500-1000 | 90 | 7.5 |
| HY85-100 | 1000 | 1000*600*500 |
(200~300)*200*200or (Octagon) |
over1800 | 1000-1200 | 120 | 11 |
| HY85-125 | 1250 | 1200*700*600 1150*700*600 |
(150~400)*240*240or (Octagon) |
over1800 | 1000-1500 | 120 | 11or15 |
| HY85/T-100 | 1000 | 1200*600*600 |
(250~400)*240*240or (Octagon) |
over1800 | 1200-1500 | 120 | 15 |
| HY85/T-125 HY85/T-125Z |
1250 | 1200*700*600 1400*700*700 |
(250~450)*240*240 (250~450)*300*300 |
over1800 | 1500-2000 | 80 | 18.5 |
| HY85Q-135 | 1350 | 1050*600*600 1300*600*600 |
(500~300)*600*240 | over1800 | 1800-2500 | 150 | 18.5 22 |
