Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-190

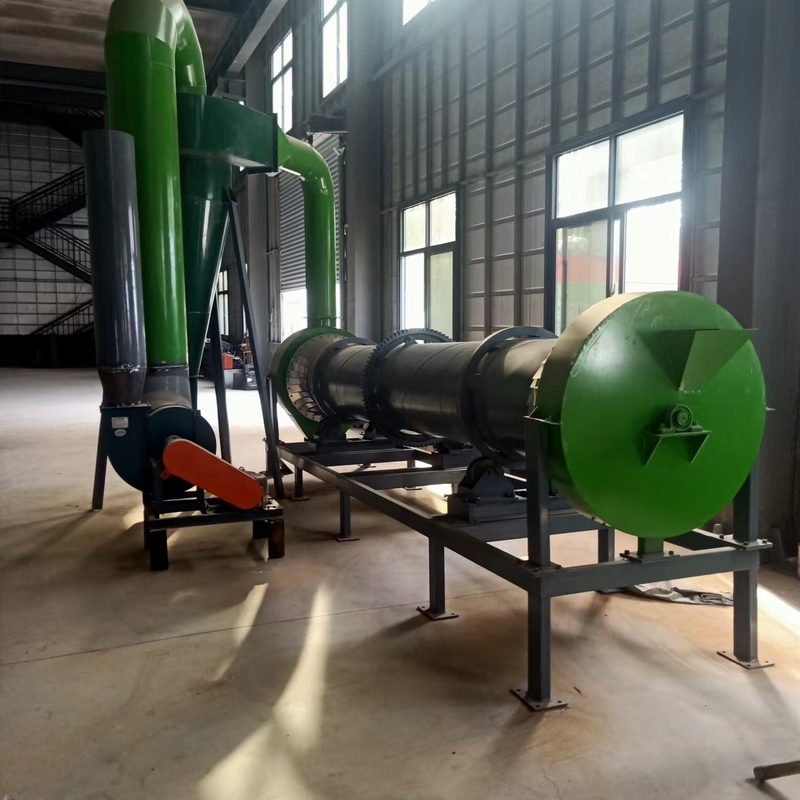

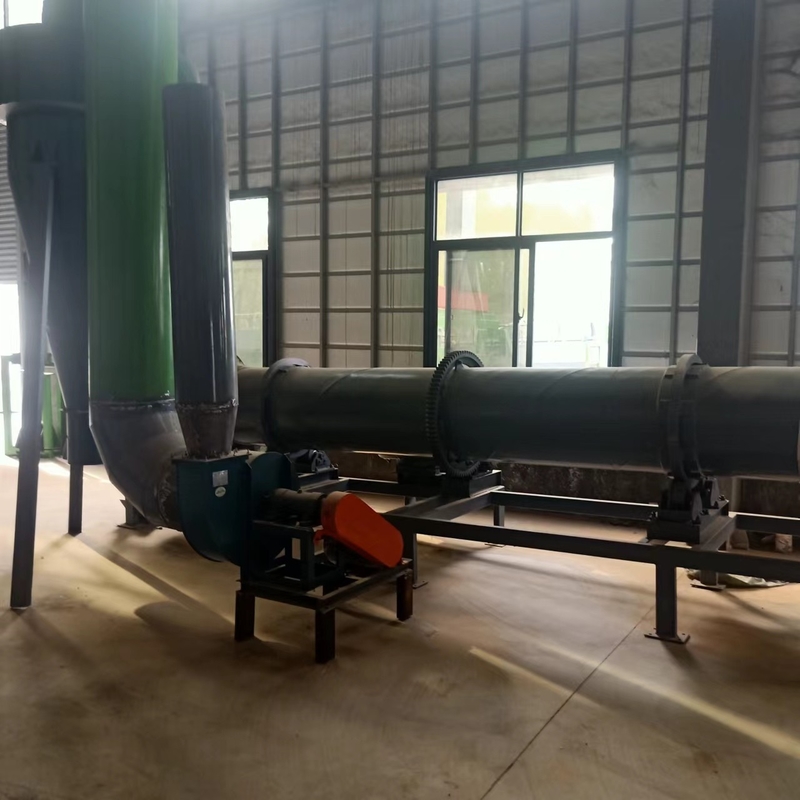

Organic Fertilizer Rotary Drum Cooler Applications and Features
This cooler used for the production of compound fertilizer, cool fertilizer with certain temperature and particle size. Use dryer together can greatly improve the cooling rate, reduce labor intensity and improve the quality, further remove moisture, reduce the grain temperature of fertilizer.
At the same time, can also be used for cooling powder, other granules materials.
Compact structure, high efficiency, reliable quality, great adaptability are the specification of this equipment.
Organic Fertilizer Rotary Drum Cooler Main Technical Parameters
| Model | shell | Feed temperature | Discharge temperature | Motor | Decele vators model | |||||
| Inner diam | length | inclination | Rotation speed | Model | Power | Rotation speed | ||||
| mm | mm | (0) | r/min | °C | °C | Kw | r/min | |||
| LQ10100 | 1000 | 10000 | 2-5 | 4.6 | 60-80 | <40 | Y132m-4 | 7.5 | 1440 | ZQ350 |
| LQ12120 | 1200 | 12000 | 2-5 | 4.6 | 60-80 | <40 | Y132m-4 | 7.5 | 1440 | ZQ350 |
| LQ15120 | 1500 | 12000 | 2-5 | 5 | 60-80 | <40 | Y160L-4 | 15 | 1440 | ZQ400 |
| LQ15150 | 1500 | 15000 | 2-5 | 5 | 60-80 | <40 | Y160L-4 | 15 | 1440 | ZQ500 |
| LQ18160 | 1800 | 16000 | 2-5 | 5 | 60-80 | <40 | Y200 L1-6 | 18.5 | 970 | ZQ500 |
| LQ20200 | 2000 | 20000 | 2-5 | 60-80 | <40 | Y200 L1-6 | 22 | 970 | ZQ650 | |
