Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HYL-196

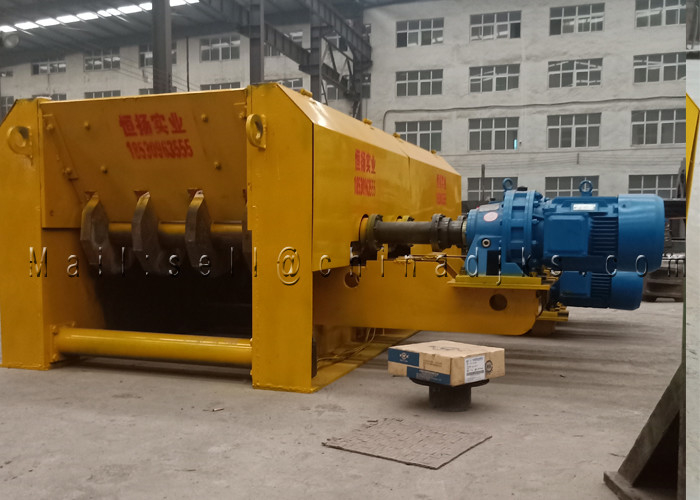

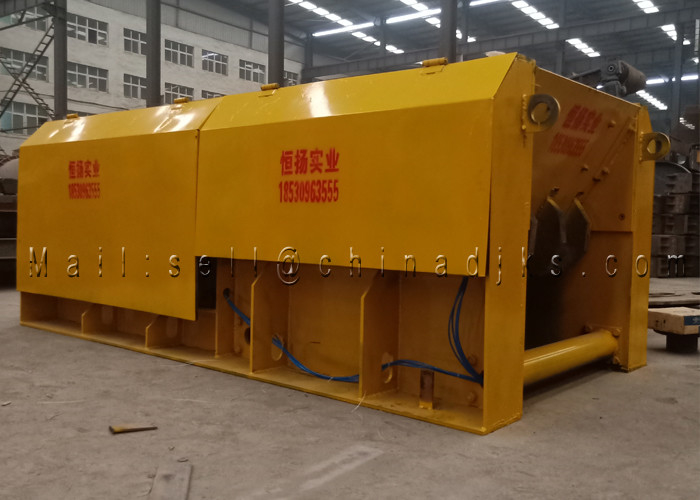

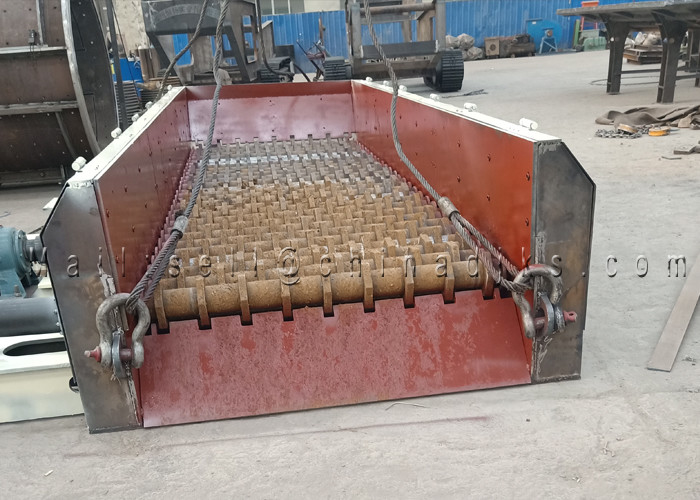

The working surface of the roller screen is composed of a series of rolling shafts that arranged horizontally, on which there are many screen plates. When working, the fine material passes through the gap between the roller or screen plate, large blocks of materials are driven by rollers, moving to the ends and discharging from the outlets. Roller screens are mostly used in the traditional coal industry.
Clay Stone Roller Screen Working Principle: For the rolling shafts are arranged according to different working angles, the speed of the material is faster when it runs in the position with higher working angle; the speed of the material is slower when it runs in the position with lower working angle.
When two kinds of materials running at different speeds converge at a certain position on the screen surface, they start to move axially, so that the materials are evenly distributed on the screen surface, and the screening efficiency is improved.
Hengyang Industry mainly uses Clay Stone Roller Screen for separating stone and debris, and than use for construction or mining. This machine also suitable for separating stone and mud, stone and other debris.
Clay Stone Roller Screen Technical Details:
| Model | 0835 | 1040 | 1240 | 1445 | 1645 | 1850 | 2050 |
| Slope (°) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Sieves Width | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Practical Width (m) | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 175 | 2 |
| Length (m) | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Power (kw) | 7.5*4 | 11*4 | 15*4 | 15*4 | 18.5*4 | 22*4 | 30*4 |
| Capacity (t/h) | 60-100 | 100-150 | 150-200 | 200-300 | 300-400 | 400-600 | 600-800 |
| Layer | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Rotation Speed (r/min) | 0-180r/min (frequency control) | ||||||
| Blade shape | Triangle type, butterfly type, teeth shape, Octagonal | ||||||
| Assist air | Frequency control Blower | ||||||
| Oil Station | Provide power | ||||||
Clay Stone Roller Screen Raw mterial and final Product:
| Raw Material | Raw Material |
|
|
| Final Separated Stones | Final Mud |
|
|
