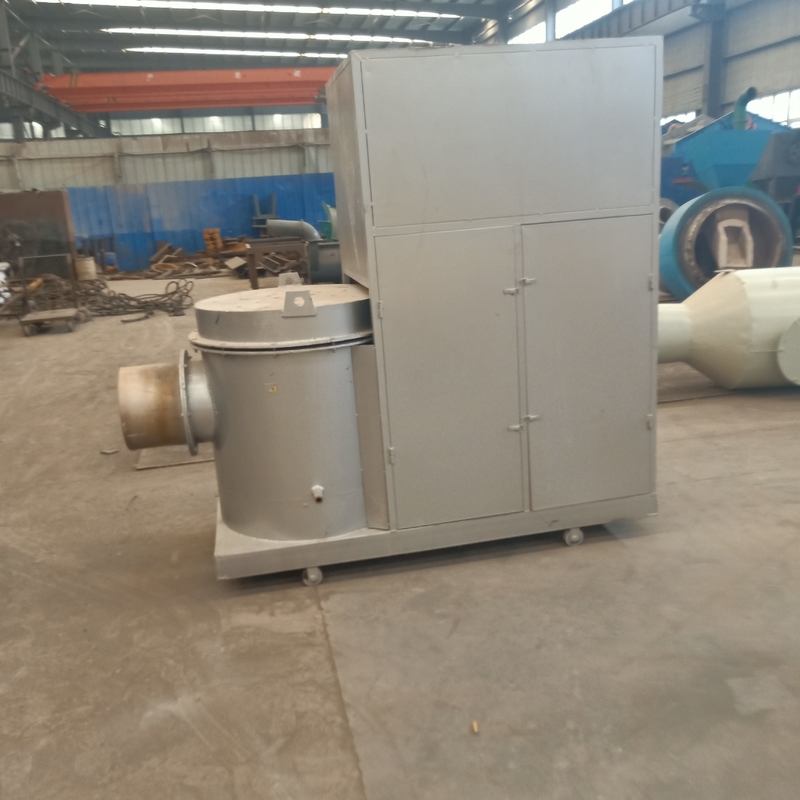

Name: Control System Biomass Wood Pellet Burner High thermal efficiency
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-205
Price: 37,160.00 USD
Availability: InStock

Home > Products > Others >

Control System Biomass Wood Pellet Burner High thermal efficiency

Control System Biomass Wood Pellet Burner

Thermal Efficiency Biomass Wood Pellet Burner

Control System biomass pellet stove

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-205

Request A Quote

Control System Biomass Wood Pellet Burner High thermal efficiency

Product Details

Use:

Biomass Burning

Color:

Customized

Product Name:

Hot Sale Control System Biomass Wood Pellet Burner

Design:

China Design

Condition:

New

Payment & Shipping Terms

Minimum Order Quantity

Price

5200-69120USD/set

Packaging Details

Negotiated

Delivery Time

20 days

Payment Terms

T/T

Supply Ability

300Sets/month

5.5-110kw Pneumatic Grain Conveyor Customized

Get Best Price

Rubber Tyre for Mobile Machinery

Get Best Price

Titanium Dioxide Pigment Production Line 0.4-30t/H Capacity

Get Best Price

Hengyang Engineering Solutions Hassle Free Maintenance

Get Best Price

86-371-56611369

Contact Now

Product Description

Hot sale control system biomass wood pellet burner

Introduction of biomass pellet burner:

This series of products adopt PIC operating system, automatic intelligent operation, touch screen one-key, Chinese LCD operating interface, fully sealed frequency conversion speed regulating feeding, with remote 485 operating interface, automatic ignition, automatic temperature control, automatic conversion between big and small fire.Using double frequency conversion can achieve the air supply, feed frequency synchronization, high thermal efficiency, full combustion, can reduce the fire nozzle dust discharge.Double connected double control, can control the temperature (high stop low start) and boiler pressure.No pollution, low emission, compact structure, simple and convenient installation, small occupancy space, low operating cost, etc. In order to meet the needs of different customers, make full use of the heat energy, the use of air-cooled, water-cooled two kinds of protection, air combustion, so that the flame temperature more powerful.Water-cooled structure, the hot water produced can be used for production or domestic use, but also can be connected to the boiler for secondary use, make full use of heat source.

Advantages of biomass pellet burner

1. High efficiency and energy saving: use renewable biomass pellet fuel as energy, low cost, reduce 30%-60% operating cost by fuel
(gas).

2. High thermal efficiency: Semi-gasification suspended combustion and tangential swirl air distribution design,
low-temperature sub-combustion, combustion rate of more than 98%, the temperature in the furnace reaches more than 1200℃.

3, stable and reliable: micro positive pressure operation, silo isolation mode of material transport, no tempering and defiring
phenomenon, has applied for the national invention patent.

4. Low carbon and environmental protection: low emission of soot,
sulfur and nitrogen, close to zero emission of carbon dioxide, meeting the emission requirements of GB12371.

5. Simple operation: convenient installation, automatic feeding, simple operation, small workload, large capacity of silo (large capacity silo can be customized).Feeding can run for 3-12 hours at a time, only need to timely fill the bin, a person on duty can be.

BRAND	Main Parts of Our Oil Burners
SIEMENS	Program Controller, Servo Motor.
DUNGS	Air Pressure Switch.
FIDA	Ignition Transformer.
SUNTEC	Oil Pump.
DANFOSS	Nozzle.
BRAHMA & PARKER	Solenoid Valve.

Application of biomass pellet burner

Control System Biomass Wood Pellet Burner High thermal efficiency 0

Technical details of biomass pellet burner

Control System Biomass Wood Pellet Burner High thermal efficiency 1
