Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-229

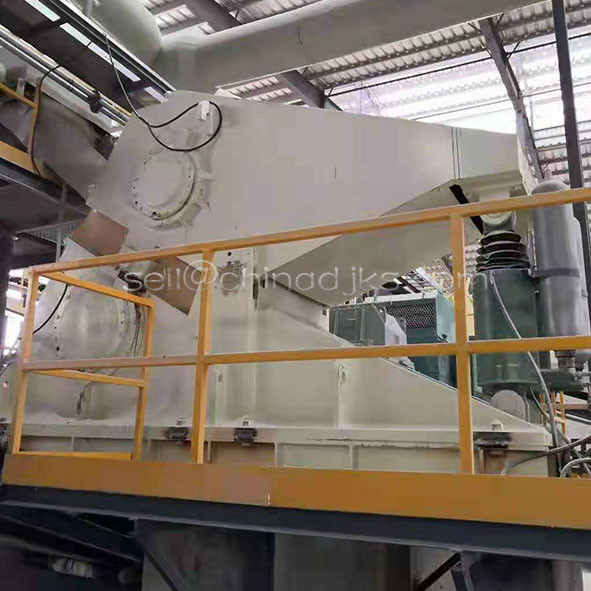

Vertical Roller Mills for Powder Making Plant
We have supplied vertical roller mills for raw, coal, slag and cement grinding for several decades. The vertical roller mill is well known in the Powder plant industries as the preferred mill for grinding of raw materials. It is increasingly used as a solution for efficient grinding.
Within the cement industry, vertical roller mills are becoming more important as more cement producers look to increase their use of clinker substitute materials instead of importing clinker to meet localised rises in cement demand.
The advantages of the vertical roller mill include a high level of grinding efficiency combined with reduced energy consumption. For raw materials and cement clinker, the vertical roller mill is an excellent grinding solution because of the relatively lower cost of installation, ease of operation and maintenance, energy efficiency and product quality. Further, our vertical roller mill solution for cement grinding has an ability to dry, grind and separate within a single unit.
Vertical Roller Mills Main Technical Details:
| Item | Detail Parameters | ||||||
| Model | HYY40 | HYY60 | HYY100 | HYY150 | HYY200 | HYY300 | HYY400 |
| Feeding Sizes | ﹤25mm | ﹤35mm | ﹤35mm | ﹤35mm | ﹤35mm | ﹤35mm | ﹤35mm |
| Throughput | 20-45t/h | 40-65t/h | 60-105t/h | 100-155t/h | 150-205t/h | 200-305t/h | 300-400t/h |
| Roller Dimension | 600*400mm | 800*500mm | 1000*600mm | 1250*600mm | 1500*700mm | 1750*700mm | 2000*700mm |
| Driving Power | 55kw | 90kw | 132kw | 200kw | 250kw | 315kw | 400kw |
| Output Sizes | ﹤5mm | ||||||
| Applicator Materials | Cobbles, iron ore, glass, ceramic, brittle materials, etc | ||||||
| Moisture | ﹤10% | ||||||
| Working Bearing Protection | Full time (Auto-control) | ||||||
| Overload Protection | Hydraulic (Auto-adjustment) | ||||||
| Central Oil Injection | Central greasing system | ||||||
