Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-316

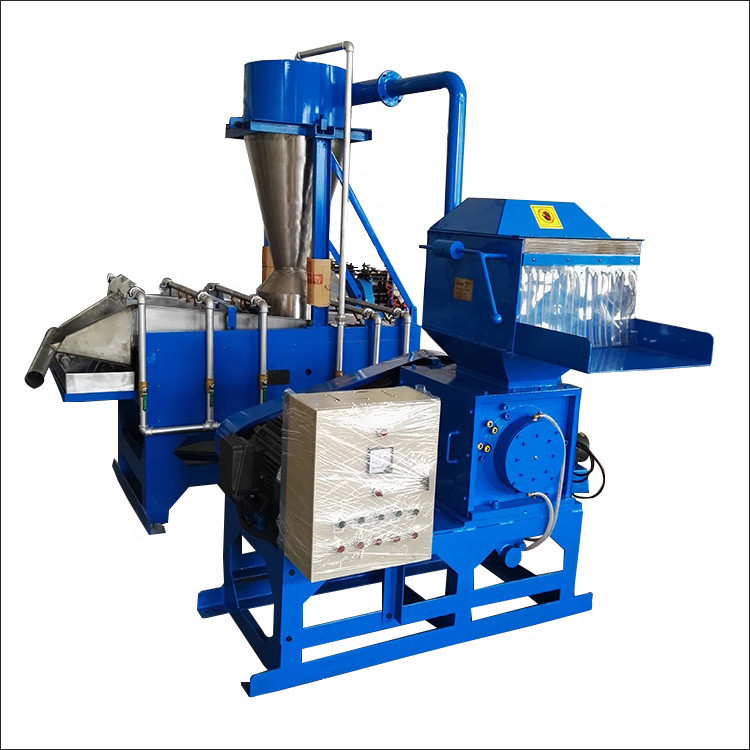

Features:
1. According to the market situation, it has many great advantages: compact structure and reasonable layout, safe and reliable, easy to install.
2. It covers an area of 3m×2.5m. No need for professional plants and infrastructure.
You can save your investments.
3. No dust during the wet separation, and no water-pollution in internal water-circulating system.
4. Good adaptability and easy operation. Intelligent control and continuous feeding make it easy to operate and save your time and energy, to ensure the stable operation of the equipment.
5. Unique combination of the crusher keeps the production at 500kg/h and the separating rate more than 99.8%.
Working Pronciple:
Under the action of water gravity, two kinds of substances with different densities, go through the deflection caused by amplitude motion on the screen surface with a certain angle. The copper particles move forward to the copper outlet, while the plastic particles flow out of the skin outlet with water. Then the separation of copper and plastic has been finished.
Technical Details:
Model | Dimension ( L×W× H ) | Voltage Range | Power | Weight | Capacity |
ZTSS-160 | 2.2m×1.3m×1.5m | 110V 220V 380V 460V | 18.5kw | 600kg | 100-150kg/ h |
ZTSS-200 | 3.2m×2.9m×2.3m | 110V 220V 380V 460V | 25.5kw | 2000kg | 300-400kg/ h |
ZTSS-450 | 3.3m×3.2m×2.3m | 110V 220V 380V 460V | 33.5kw | 3000kg | 600-800kg/ h |
