10 - 200TPH Gaint Rotary Drum Washing Machinery With Screen

10 - 200TPH Gaint Rotary Drum Washing Machinery With Screen

Gaint Rotary Drum Washing Machinery

200TPH Rotary Drum Washing Machinery

Rotary Drum Washing Machinery With Screen

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-321

Contact Us
Request A Quote
Product Details
Name:
10-200TPH Gaint Rotary Drum Washing Machinery With Screen
Function:
STONE WASHING
Condition:
New
Color:
Customized
Application:
Building Materials
Capacity:
According To Buyer's Requirement
Payment & Shipping Terms
Minimum Order Quantity
1
Price
5200-69120USD/set
Packaging Details
Negotiated
Delivery Time
20-40days
Payment Terms
T/T
Supply Ability
300Sets/month
Product Description

Drum washing machine is able to de-slime the sand and stone, the drum inside is equipped with single or double layer round screen to get 2-3 different size of sand stone materials.
The slurry material feeds into the drum, the soil matrix is broken up and the target mineral is released. The material is then screened through the rotating screen.
The screened material is then passed into the concentrating modules for upgrading.

Application of drum washing machine:

It is widely used to the washing of manganese ore, iron ore, limestone, tungsten ore, silica and so on.

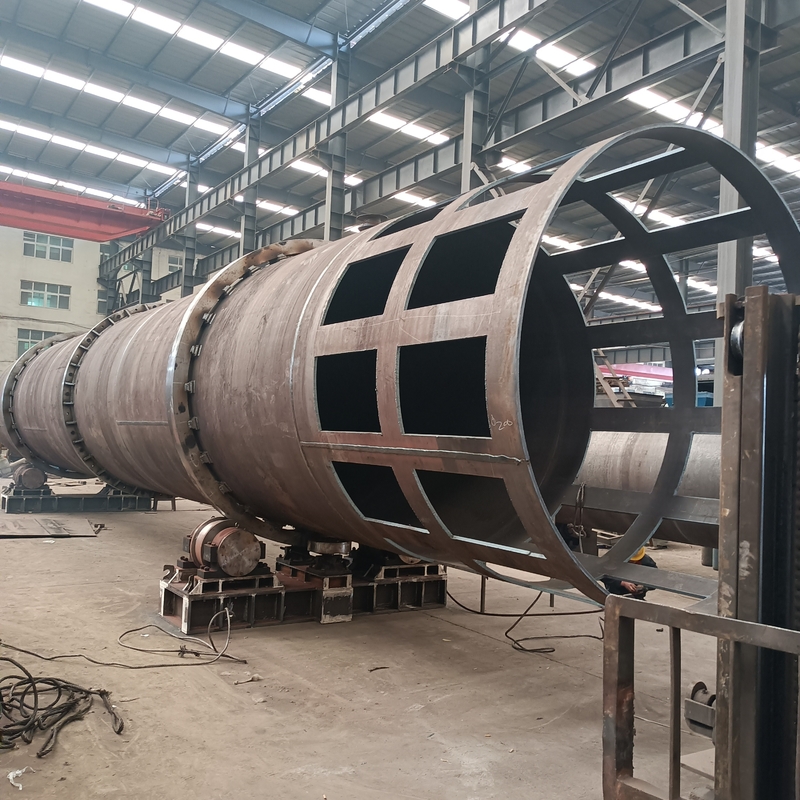

10 - 200TPH Gaint Rotary Drum Washing Machinery With Screen 0
Advantages of drum washing machine
1 Customized capacity and strong power scrubbing, large capacity can reach 200-250tons per hour
2 Long washing drum of the scrubber retains material for longer, more vigorous washing for complete separation
3 One high output electrical motor driving a rubber wheel system providing efficient torque
4 Rotation speed can be adjusted by advanced reducer
5 The water with high pressure flushed the inwall of drum
6 Maximum feed size 230mm
TECHNICAL PARAMETER
Model Screen Size (mm) Rotation Speed (r/min) Feeding Size (mm) Water Consumption (m³/h) Capacity (t/h) Power (kw) Weight (t)
HYX1030 ≤20 27.9 ≤80 1 40 15 3.8
HYX1230 ≤25 27.6 ≤100 1.3 70 22 4.7
HYX1430 ≤25 27.6 ≤100 1.5 80 22 4.9
HYX1545 ≤25 21 ≤160 1.7 120 30 6.9
HYX2265 ≤50 19 ≤230 1.8 180 37 15.9
