Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-323

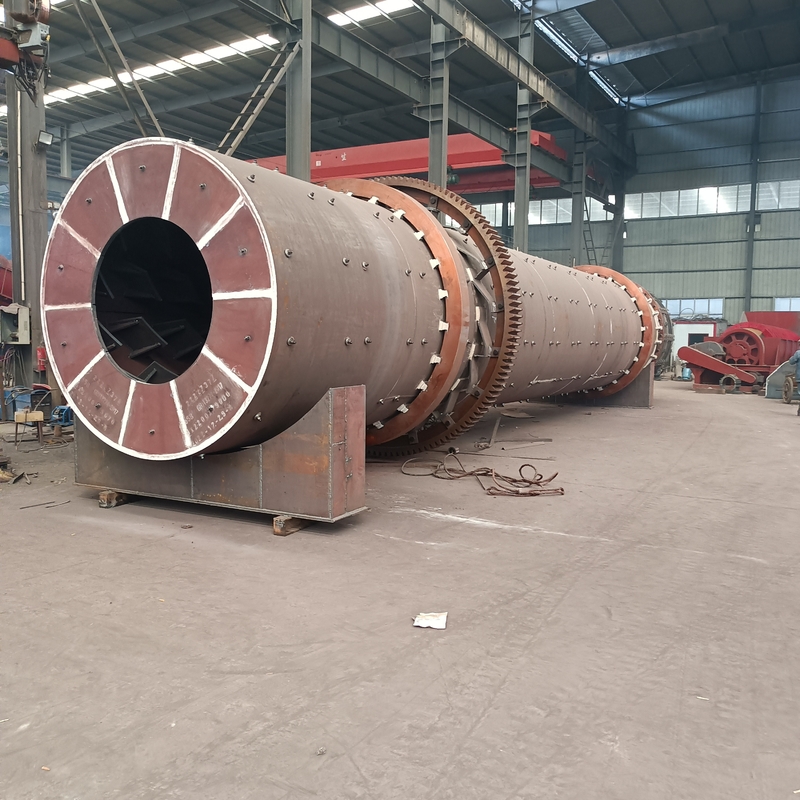

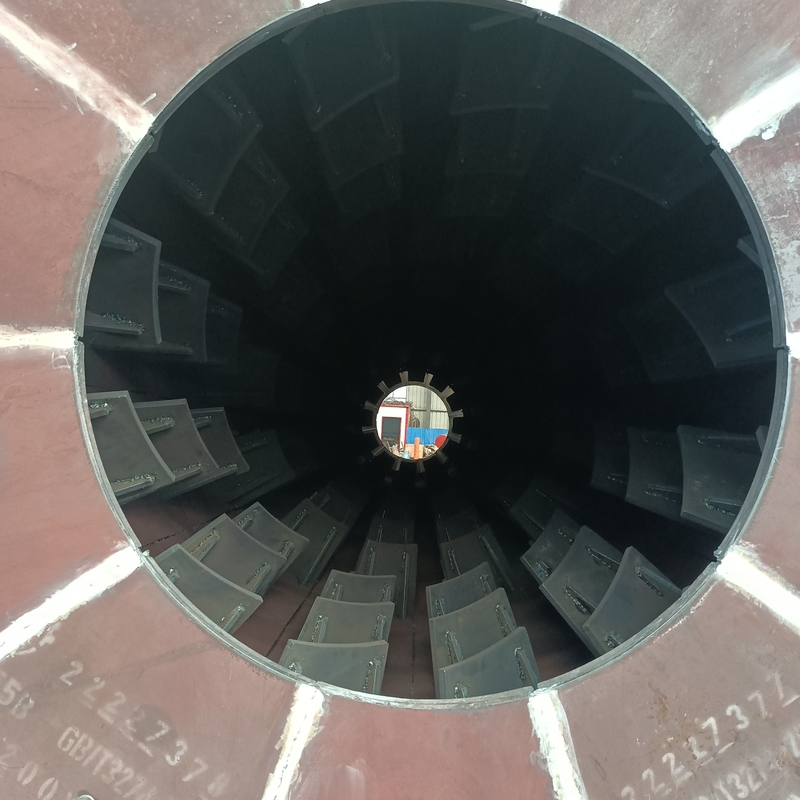

RRotary Scrubbers are used to wash crushed rock, ore, sand, gravel, construction aggregates and oil sands. They are high-capacity, high-retention machines that can accept large-sized feed material and are used primarily to remove water-soluble clays, deleterious materials and coatings providing a cleaner productotary are used to wash crushed rock, ore, sand, gravel, construction aggregates and oil sands. They are high-capacity, high-retention machines that can accept large-sized feed material and are used primarily to remove water-soluble clays, deleterious materials and coatings providing a cleaner product.
Rotary Scrubbers are designed primarily for the removal of loam and light clays and soft, soluble waste materials from aggregates, stone and ore. These units are not intended to replace Log Washers on applications where tough plastic clays are contaminating the material to be cleaned. When these tough clays are fed to a Scrubber, the clay particles may have a tendency to pelletize through the tumbling action of the material. For example, golf ball-sized pieces of plastic clay may not break down and could actually increase in size.
| Model | Screen Size (mm) | Rotation Speed (r/min) | Feeding Size (mm) | Water Consumption (m³/h) | Capacity (t/h) | Power (kw) | Weight (t) |
| HYX1030 | ≤20 | 27.9 | ≤80 | 1 | 40 | 15 | 3.8 |
| HYX1230 | ≤25 | 27.6 | ≤100 | 1.3 | 70 | 22 | 4.7 |
| HYX1430 | ≤25 | 27.6 | ≤100 | 1.5 | 80 | 22 | 4.9 |
| HYX1545 | ≤25 | 21 | ≤160 | 1.7 | 120 | 30 | 6.9 |
| HYX2265 | ≤50 | 19 | ≤230 | 1.8 | 180 | 37 | 15.9 |
