Name: Anthracite Coal Mining 4 Teeth Roller Crusher
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-470
Price: 206,700.00 USD
Availability: InStock

Home > products > Mineral Processing Plant >

Anthracite Coal Mining 4 Teeth Roller Crusher

4 teeth roller crusher

Anthracite Coal Mining Roller Crusher

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-470

Request A Quote

Anthracite Coal Mining 4 Teeth Roller Crusher

Product Details

Name:

Anthracite Coal Mining 4 Teeth Roller Crusher

Application:

Coal Mining

Function:

Crushing

Capacity:

3000kg/h-550000kg/h

Condition:

New

Color:

Customize

Payment & Shipping Terms

Minimum Order Quantity

Price

57000-356400

Packaging Details

negociated

Delivery Time

20-40 days

Payment Terms

T/T

Supply Ability

270 sets/month

OEM Graphite Grinding Plant Process Working 0.4-30t/h Capacity

Get Best Price

Graphite Mining Process Plant With 200-10t/H Capacity

Get Best Price

Mineral Processing Plant High Purity Graphite Using Comminution Pressure Leaching And Flotation

Get Best Price

Graphite Production Process Plant 50-350t/d Capacity

Get Best Price

86-371-56611369

Contact Now

Product Description

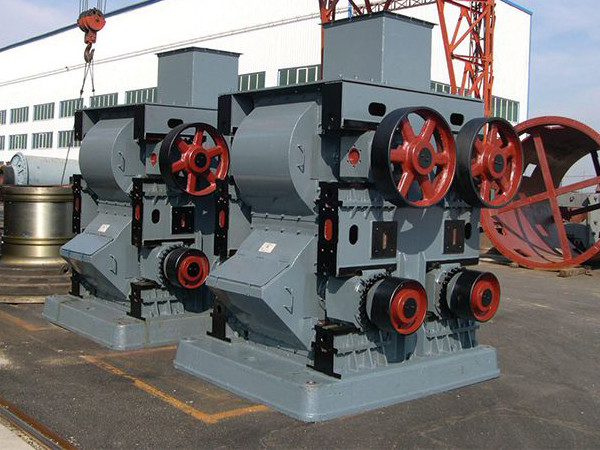

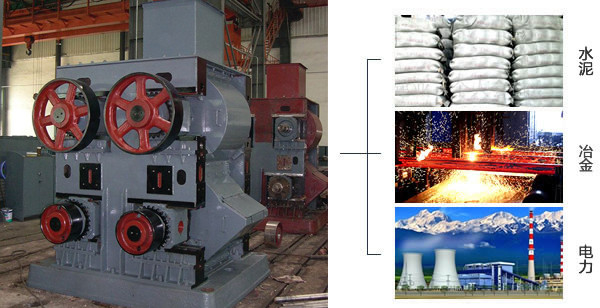

Hengyang Four Roller coal crusher machine,Teeth roller coal crusher machine with 100% non gluing and plugging is a new type crusher Which mainly used to crush medium and low hardness brittlematerials, for example coal, soft coal, coal gangue, lignite, sinter, shale, coke limestone and etc.

Anthracite Coal Mining 4 Teeth Roller Crusher 0

Four roll crusher crush material by high extrusion pressure and shear force generated four high-strength wear-resistant rollers relative rotation, after the material into the top two rollers (V-type crushing chamber),the materials bear the squeeze pressure generated relative rotation of the upper two rollers, after the first time the materials is crushed (coarse broken), then into the middle of two counter-rotating rolls, after the scond time the materials is crushed (fine broken), the last into the next two rolls, the materials is crushed again (super fine broken),after broken to the desired size, then sent by the transport equipment.
(only applies to the four roll three step broken model)

Model	Feed siz(≤mm)	Discharge size (≤mm)	Processing capacity (t/h)	Motor power (kW)
4PG0404	≤25	0.1-5	3-30	11	11
4PG0605	≤40	0.1-5	5-70	15	15
4PG0608	≤40	0.1-5	8-90	18.5	18.5
4PG0809	≤60	0.1-5	12-120	22	22
4PG0812	≤60	0.1-5	20-180	37	37
4PG1012	≤80	0.1-5	30-220	45	45
4PG1212	≤90	0.1-5	45-320	75	75
4PG1216	≤90	0.1-5	55-400	90	90
4PG1218	≤90	0.1-5	70-500	110	132
