Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-494
Zinc-coated galvanized steel scrap is the most widely used feedstock for Electric Arc Furnace (EAF) steel production. World crude steel production reached 1,66 billion metric tons for the year 2014, up by 3.9% compared to 2013 (World Steel Association). Around 26% of crude steel is produced using the EAF technology.
During the EAF process, the high temperatures required to melt the feed material produce a zinc byproduct (EAF dust) that leaves the furnace along with the off-gases. The gases are filtered and the EAF dust is collected in bag houses.
The EAF dust waste steam is considered a hazardous material due to the potential for the heavy metals to leach into the ground, contaminating ground water and sewage systems.

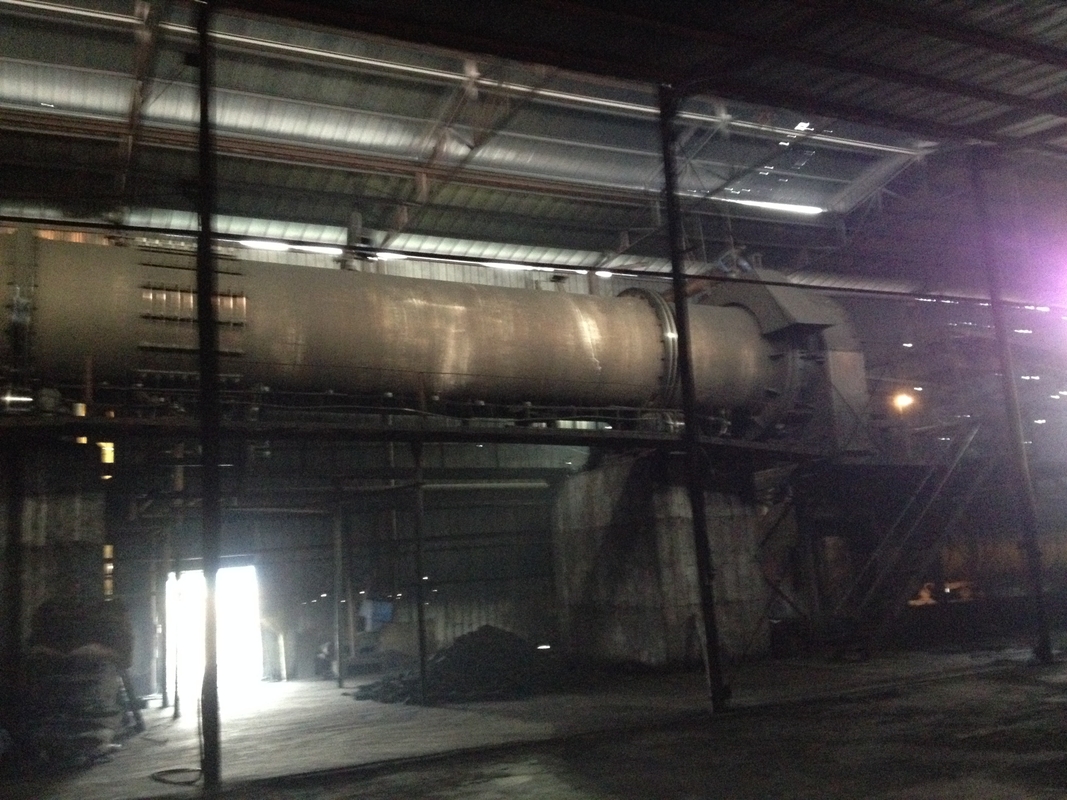

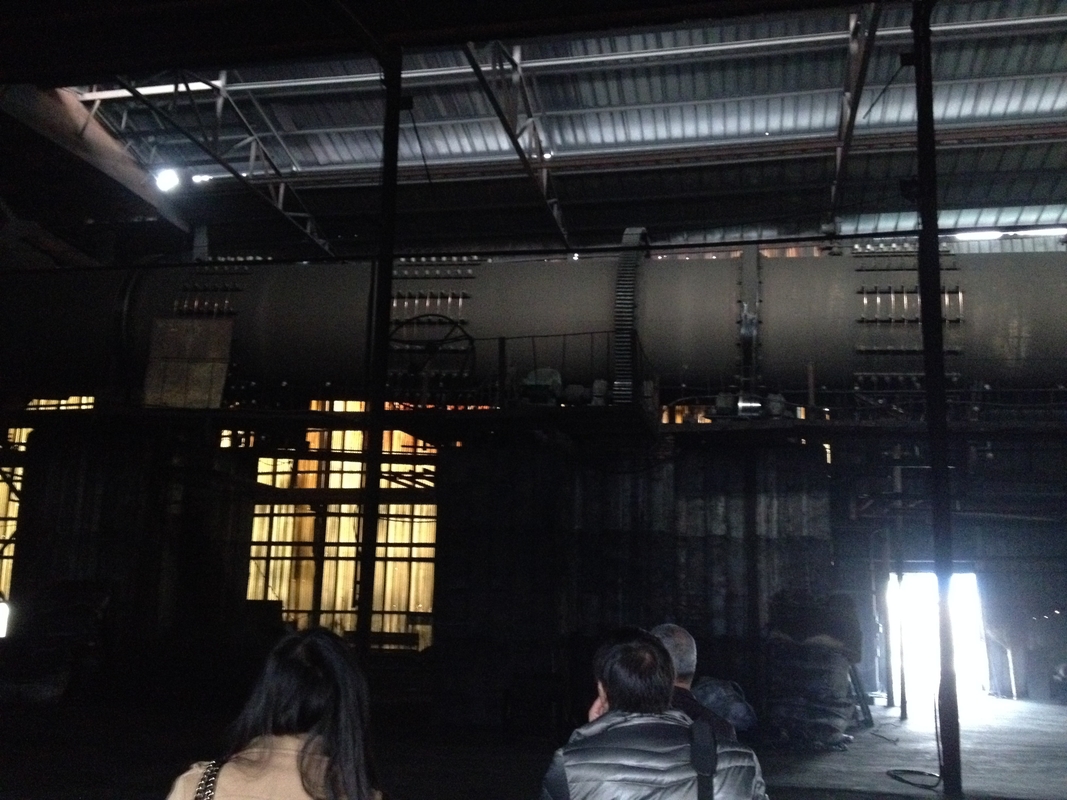

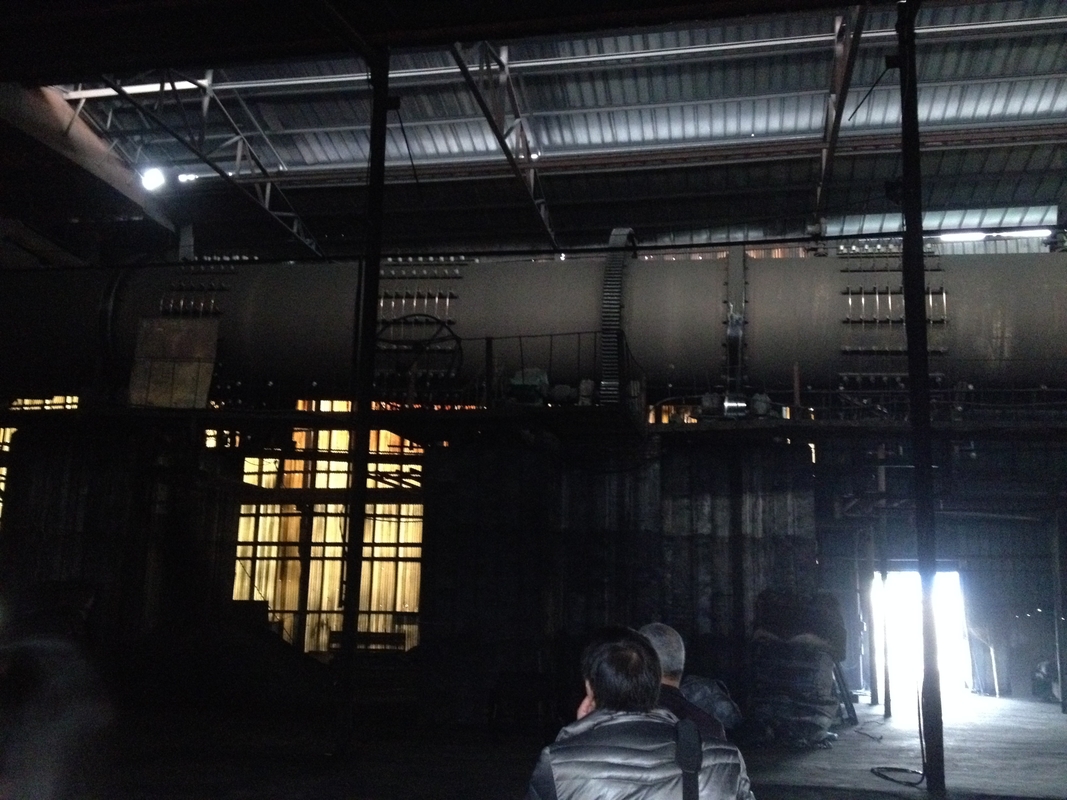

The EAF dust generated by steel mills can be recycled in an economically viable way using the rotary Kiln technology. The recycling process is part of the larger steel industry loop that allows the reuse of two important natural resources - zinc and iron.
Technical Parameter
| Model | Kiln size | Motor Power | Total weight | ||||
|---|---|---|---|---|---|---|---|
| (m) | Diameter(m) | Length(m) | Slope(%) | Capacity(t/d) | Rotating speed(r/min) | (kw) | (t) |
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 201.94 |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 |
| Φ3.0×60 | 3 | 60 | 4 | 800 | 0.3-2 | 100 | 310 |
Rotary Zinc Oxide is the main product of recycling EAF dust utilizing the Rotary Kiln technology. This product is sold to zinc smelters as an alternative to traditional zinc concentrates from mines. The zinc smelters produce pure zinc ingots or other high purity zinc products that are either sold to the steel industry for galvanization purposes or sold to other end-users for pigments, tires, chemicals or medicines.
