Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-509

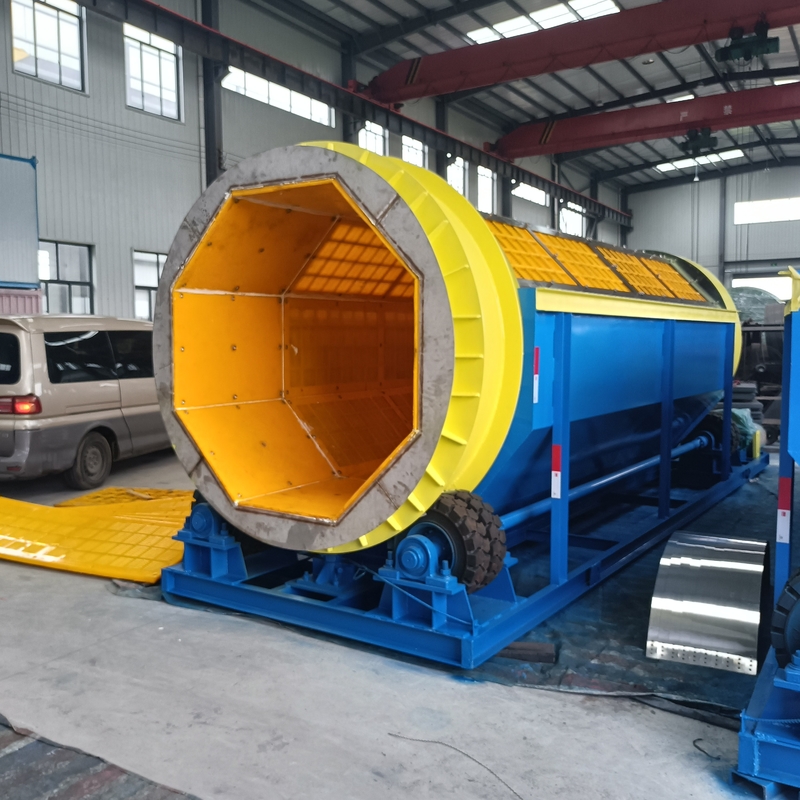

Drum Trommel Screen is one of the equipment in the comprehensive sorting system of Solid Materials. Mainly use for silica sand, mineral ores, industrial materials, solid waste, etc.
This equipment has the characteristics of large processing capacity, stable operation, high screening efficiency, and accurate particle size sorting. The drum Trommel Screen is equipped with a bag breaking tool inside, ensuring reliable bag breaking without entanglement; The optimized structural design ensures the convenience of daily cleaning and maintenance inside the screen.
Technical Details:
| Specification and model | Roller Diameter(mm) | Screen aperture(mm) | Screen material | power(kw) | Roller screen support wheel | Remarks |
| HY-1030 | 1000 | 20-80 | PU | 2.2×2 | Polyurethane wheels | Support customization |
| HY-1240 | 1200 | 20-80 | PU | 3×2 | Polyurethane wheels | Support customization |
| HY-1560 | 1500 | 20-100 | PU | 4×2 | Polyurethane wheels | Support customization |
| HY-1860 | 1800 | 20-100 | PU | 5.5×2 | Polyurethane wheels | Support customization |
| HY-2080 | 2000 | 20-100 | PU | 7.5×2 | Polyurethane wheels | Support customization |
| HY-2580 | 2500 | 20-100 | PU | 15×2 | Polyurethane wheels | Support customization |
| HY-30100 | 3000 | 20-100 | PU | 18.5×2 | Polyurethane wheels | Support customization |
