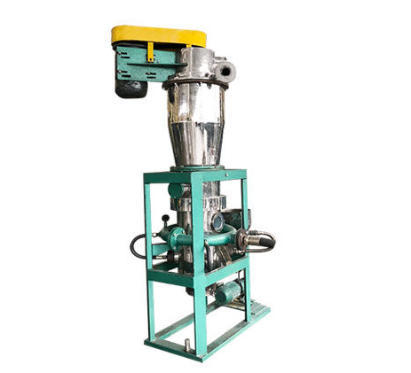

LHL Jet Mill 10-2000kg/h Stainless Steel Waste Processing

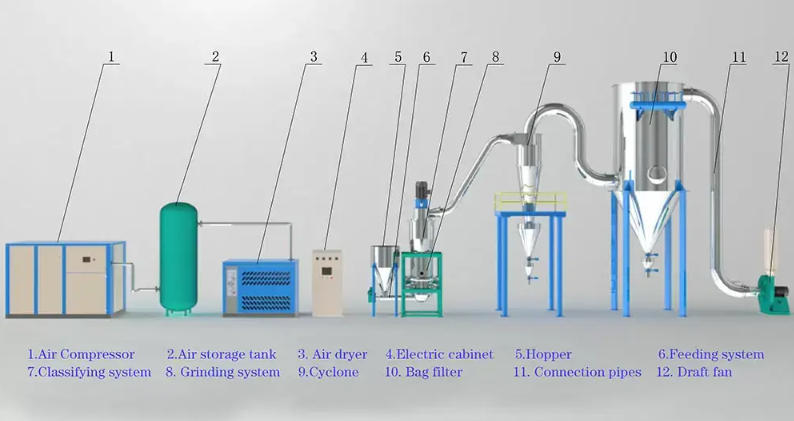

The LHL Jet Mill utilizes compressed air that is frozen, filtered, and dried to form a supersonic airflow injected into the crushing chamber, fluidizing the material. Accelerated particles collide at the intersection of multiple nozzle airflows, achieving ultra-fine crushing through severe collision, friction, and shear forces.

Crushed material is transported to the classification area where centrifugal force separates coarse and fine particles. Coarse particles return for further crushing while fine particles are collected, with purified gas discharged by the fan system.

• 30% lower energy consumption compared to traditional fluidized bed jet mills
• Built-in self-splitting micro-powder classifier ensures concentrated size distribution without oversized particles
• Compact design with minimal footprint requirements
• No material retention in crushing box - easy to clean, disinfect, and change product varieties (GMP compliant)
• Low-temperature, medium-free crushing ideal for heat-sensitive, sugary, and volatile materials
• Inert gas compatibility for processing flammable/explosive materials with closed-loop recycling
• Adjustable particle size range (3-180μm) with throughput options from 5-3000kg/h
• Negative pressure operation eliminates dust pollution
• Highly automated with stable operation and simple controls

The LHL Jet Mill is widely used in chemical industries, mining, abrasive materials, refractory materials, non-metal mines, metallurgy, building materials, pharmaceuticals, food processing, pesticides, feed production, new materials development, and environmental protection applications. It excels in ultra-fine pulverizing, disintegrating, and reinforcing grain structures for various dry materials.
