Name: Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: XL-2XL series
Price: 33,850.00 USD
Availability: InStock

Home > Products > Micron Powder Grinding Machine >

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

High Capacity Double Spiral Sand Washer

Double Spiral Sand Washer

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

XL-2XL series

Request A Quote

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

Product Details

Voltage:

220V/380V,220V,110/220 V,380V,Customized

Warranty:

12 Months

Funcation:

Sand And Gravel Washing

Type:

Washing

Color:

Customize

Payment & Shipping Terms

Minimum Order Quantity

Price

12000-55700USD/set

Packaging Details

Negociated

Delivery Time

15-20 days

Payment Terms

T/T

Supply Ability

300 sets/month

Nonmetal Rotary TROMMEL Screen for material separation processes

Get Best Price

Contact Now

Product Description

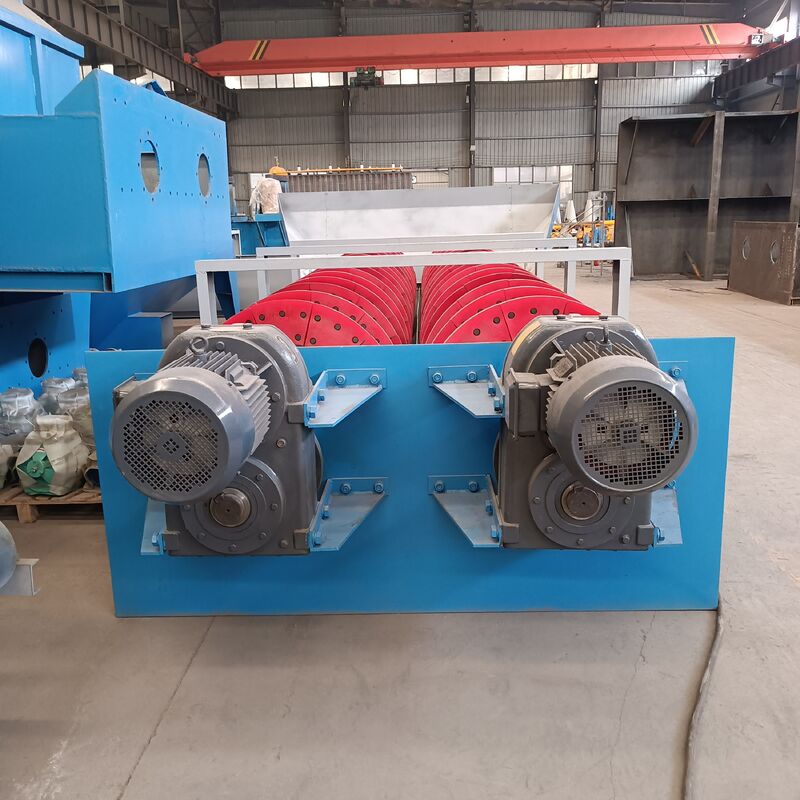

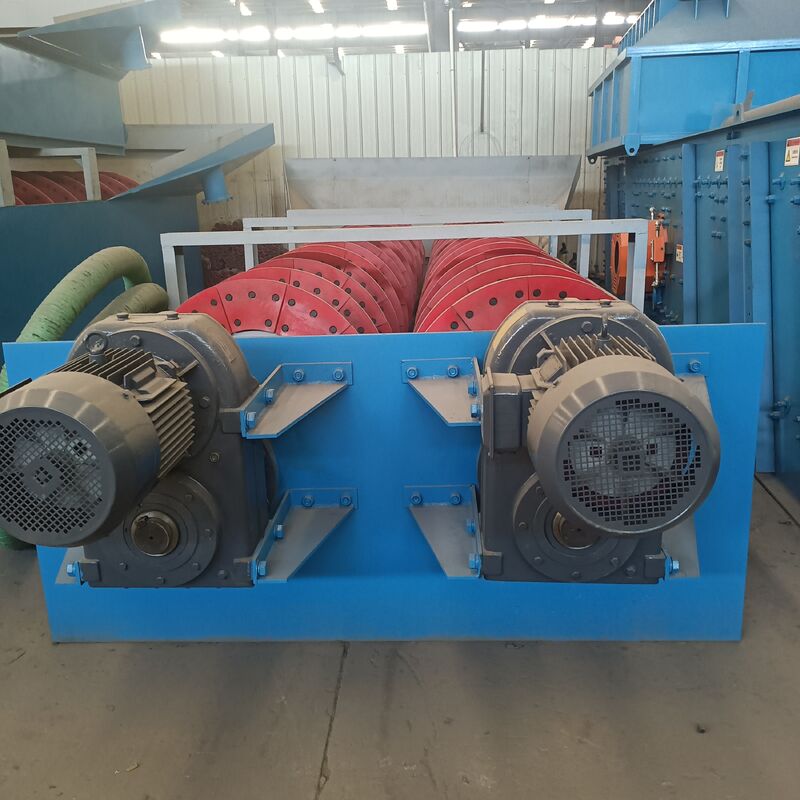

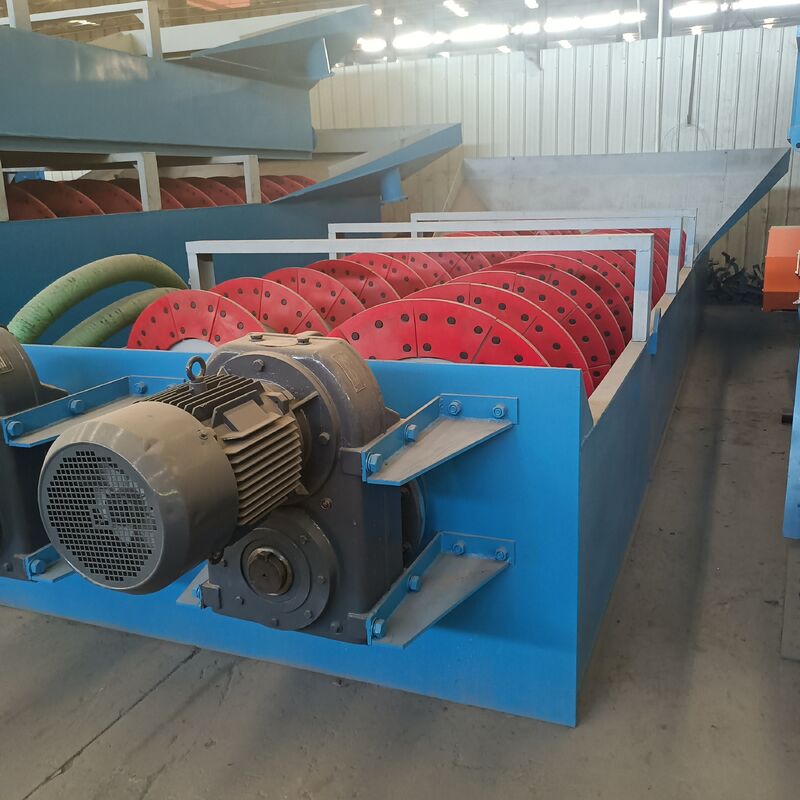

Double Spiral Sand & Gravel Washer

The spiral sand washer efficiently cleans sand and gravel through its spiral mechanism. The equipment stirs the material, mixing soil and water which is then discharged through designated outlets. Under the spiral's action, sand and gravel are gradually screened and discharged from the top outlet, achieving thorough cleaning.

Main Features

Double shaft design provides wider processing width compared to single-spiral models
Higher output capacity than single-spiral washers
Maintains excellent cleaning quality equivalent to single-spiral models
Strong cleaning capability with effective results
Ideal for processing sand and gravel with significant impurity content
Commonly deployed in large-scale sand production operations

Contact: +8615617816797

Technical Parameters

Model	XL508	XL610	XL762	XL915	2XL915	XL1115	2XL1115
Screw Diameter (mm)	508	610	762	915	915	1115	1115
Length of Tub (mm)	6705	7225	7620	7585	7585	9782	9782
Max Feed Size (mm)	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10
Capacity (t/h)	20	40-50	50-75	100	200	175	350
Speed of Screw (r/min)	38	32	26	21	21	17	17
Motor Power (kw)	5.5	7.5	11	11	2×11	15	2×15
Water Consumption (t/h)	6-60	6-63	9-63	10-80	20-160	20-150	40-300
Overall Dimensions (L×W×H mm)	8000×2343×1430	8000×2050×1400	8545×2650×3862	8500×2810×3600	8420×3765×3960	10970×3945×4720	10970×5250×4720
Weight (t)	2.67	3.80	5.23	6.27	11.11	10.18	17.94
