Name: Customize Industrial Processing EAF Dust from Wealz Kiln
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: wealz KILN
Price: 65,350.00 USD
Availability: InStock

Home > Products > EAF Dust Recycling >

Customize Industrial Processing EAF Dust from Wealz Kiln

Wealz Kiln EAF Dust

EAF Dust Recycling Wealz Kiln

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

wealz KILN

Document:

Zinc Waste Recycling.pdf

Request A Quote

Customize Industrial Processing EAF Dust from Wealz Kiln

Product Details

Capacity:

0.9-40t/h

Power:

18.5-132kw

Color:

Customize

OEM:

EPC:

Payment & Shipping Terms

Minimum Order Quantity

Price

35000-95700USD/set

Packaging Details

Negociated

Delivery Time

15-20 days

Payment Terms

T/T

Supply Ability

30sets/month

Acid Leaching in EAF Dust Recycling

Get Best Price

Waelz Kiln Technology of EAF Dust Extracting ZinO for Industrial Recycling Solutions

Get Best Price

Recycling Hazardous Waste Production Line for waste management solutions

Get Best Price

Contact Now

Product Description

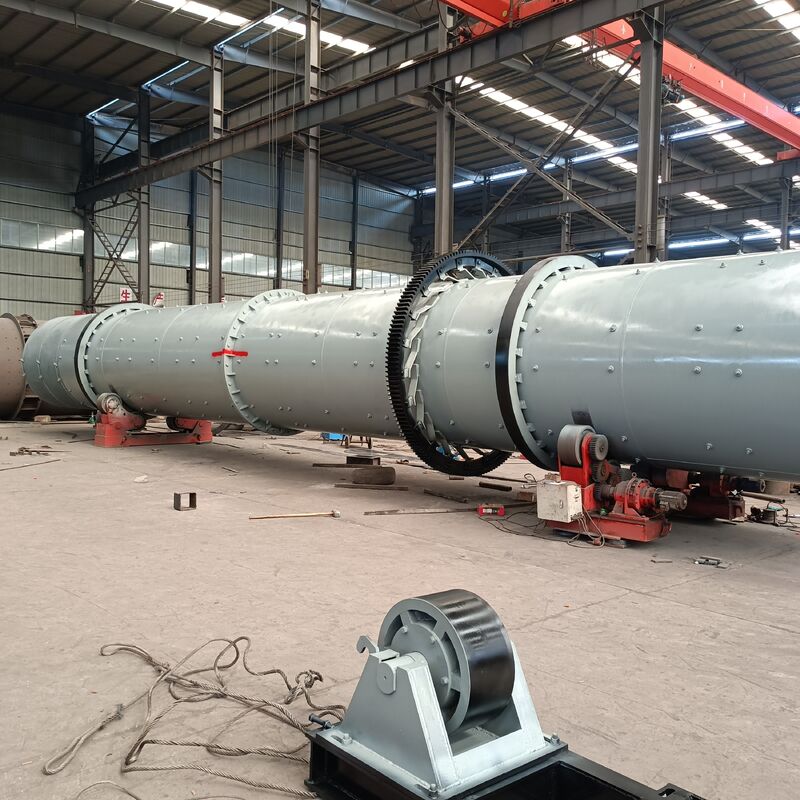

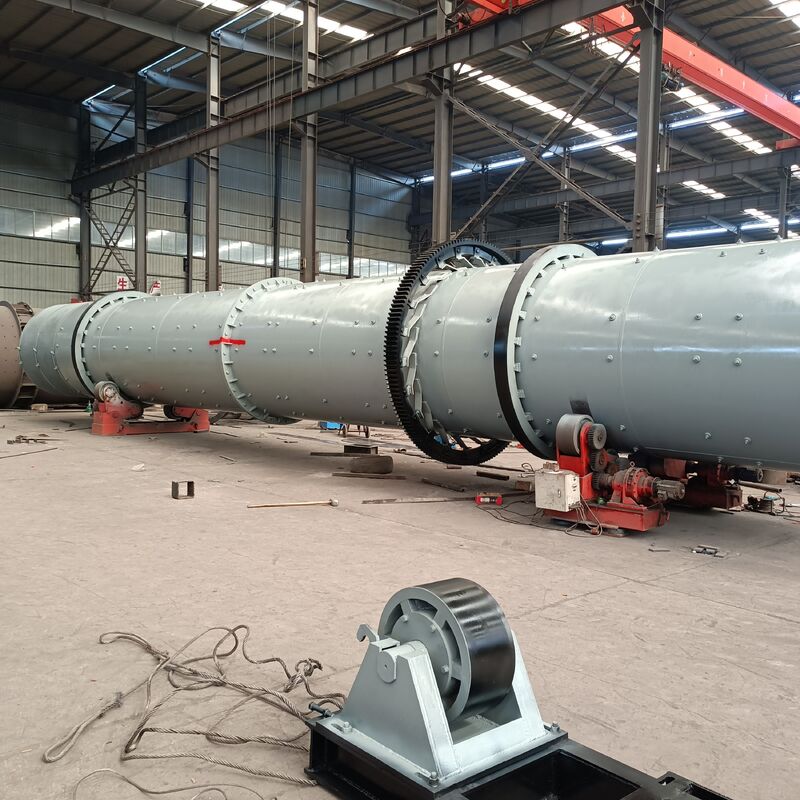

The Waelz Kiln is the dominant technology accounting for 80% of total crude zinc oxides production worldwide from EAF dust sources. In the Waelz process EAF steel dust is mixed with solid reducing agent and lime or silica, pelletized and then it is fed to the kiln and heated to reaction temperature to volatilize the non-ferrous metals like zinc and lead, while ferrous oxides are also reduced. The main components of the Waelz oxides are volatilized oxides of non-ferrous metals (Zn,Pb, Cd, etc.) and also halogens (mainly chlorides), alkaline metals (Na, K), and some sulphur oxide.

Nowadays, the major part of Waelz oxide is used by primary zinc smelters to produce electrolytic zinc. Because halogens content in the Waelz oxide have a detrimental effect in zinc electro-winning, the zinc smelters normally request a concentration of each CI and F not higher than 0.1%which requires a washing step. Nonetheless, the ratio of washed crude zinc oxides blended with sulphide concentrates that can be fed to the roaster is usually not higher than 10%. The direct feeding of washed Waelz oxide to the leaching is hardly applied. Customize Industrial Processing EAF Dust from Wealz Kiln 0

Kiln Technical Details:

Specification Model (m)	The size of the kiln			Yield (t/h)	Speed (r/min)	Electrical power (kw)	Weight (t)	Remarks
Specification Model (m)	Diameter (m)	Length (m)	Gradient (%)	Yield (t/h)	Speed (r/min)	Electrical power (kw)	Weight (t)	Remarks
φ1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	----
φ1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	----
φ1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	----
φ1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	----
φ2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1	----
φ2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	----
φ2.5×40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	----
φ2.5×50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	----
φ2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	----
φ2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	----
φ2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Preheater kiln
φ3.0×45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	----
φ3.0×48	3	48	3.5	25.6-29.3	0.6-3.48	100	237
φ3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310	----
φ3.2×50	3.2	50	4	40.5-42	0.6-3	125	278
