Name: Gypsum Grinding Powder Production Line
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Gypsum Ginding
Price: 562,000.00 USD
Availability: InStock

Home > Products > Micron Powder Grinding Machine >

Gypsum Grinding Powder Production Line

gypsum powder grinding production line

micron powder grinding machine for gypsum

gypsum grinding line with warranty

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

Gypsum Ginding

Document:

Grinding Ball Mill.pdf

Request A Quote

Product Details

Application:

Gypsum Grinding

Capacity:

1-50t/h

OEM:

Fineness:

100-500mesh

Condition:

New

Color:

Customize

Voltage:

Up To Clients

Payment & Shipping Terms

Minimum Order Quantity

Price

335000-789000

Packaging Details

negociated

Delivery Time

30-50 days

Payment Terms

T/T

Supply Ability

20 sets/month

Gypsum Grinding Powder Production Line

Get Best Price

Ultra-fine Talcum Powder Production Line

Get Best Price

Talcum Powder Production Line

Get Best Price

Ball mill+air classifier system used for ultra-hard mineral

Get Best Price

Contact Now

Product Description

Gypsum Grinding Powder Production Line 0

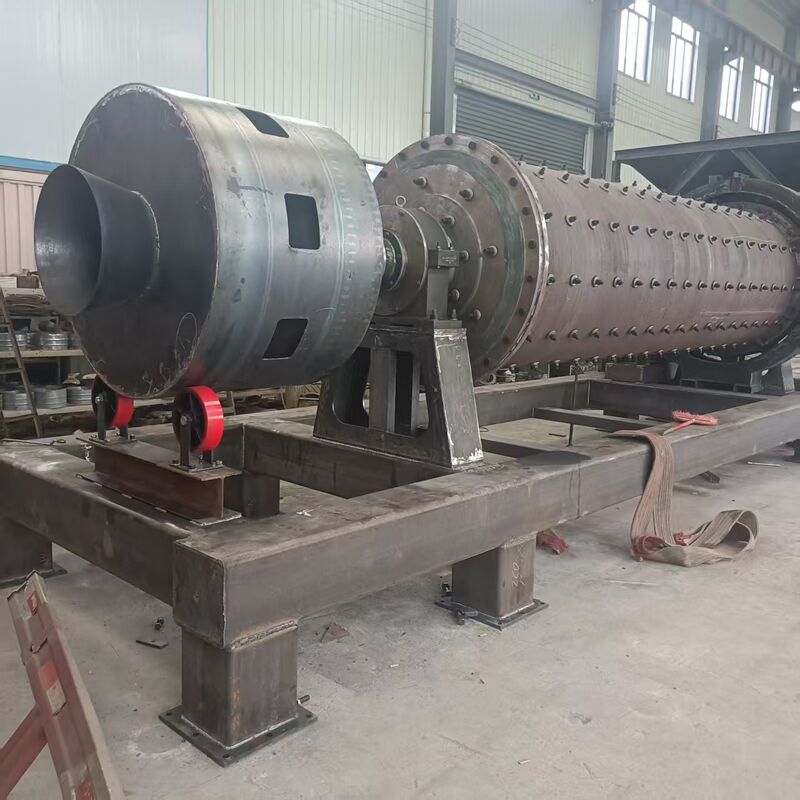

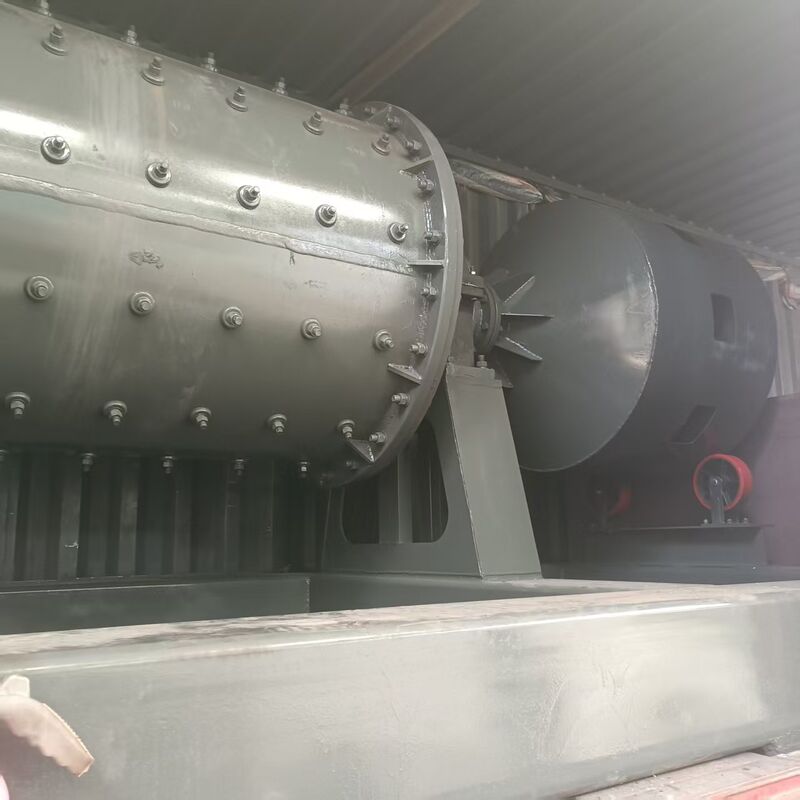

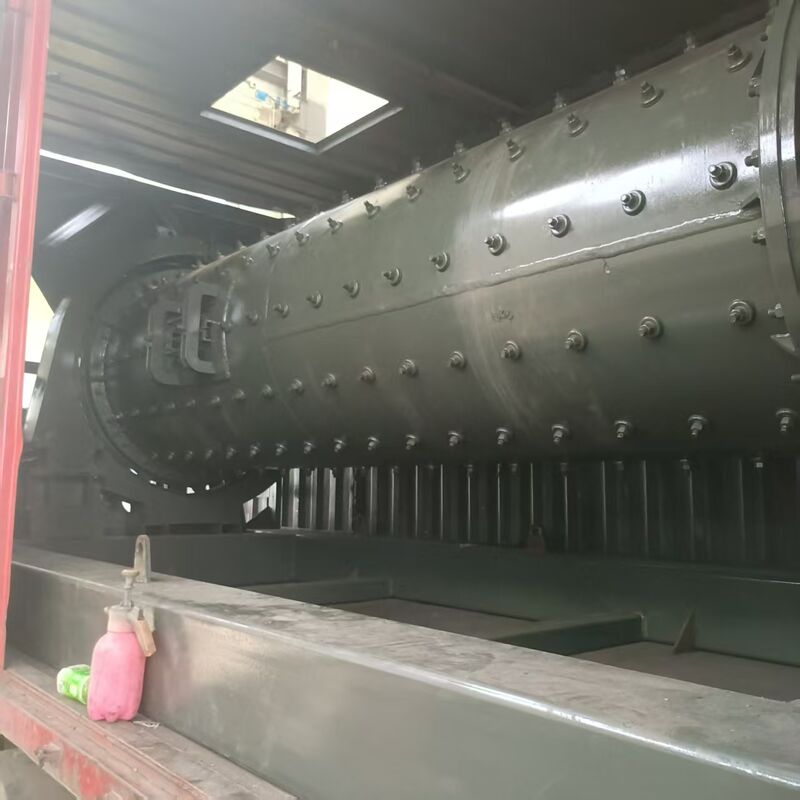

Energy-saving ball mill grinding machine is one of the high-fine grinding equipments for material grinding after crushing process.It is widely used in powder grinding plants,Such as cement, new-type building material, silicate, refractory material, fertilizer, glass ceramics , ferrous and non-ferrous metal etc.

Gypsum Grinding Powder Production Line 1

❤Firstly, big particle stone will be crushed into less than 15 mm by stone crusher.

❤Second. crushed material will be transported into ball mill and ground into 200-325 mesh.

❤After being ground, the fine particle size will be transported into powder classifer and being selected.

❤Unqualified product (big size) will be screwed back into ball mill and regrind again. Qualified finished product will be collected into powder collector and packed.

Gypsum Grinding Powder Production Line 2

Model	cylinder Spcification(mm)		rotate speed	Weight of grinding medium	feed size	discharge size	capacity	motor powder	weight
	dia.	length.	(r/m)	(t)	(mm)	(mm)	(t/h)	(kw)	(t)
QMJ0918	900	1800	42	1.4	＜25	0.74-0.4	0.6-2	18.5	3.6
QMJ0921	900	2100	41	1.7	＜25	0.74-0.4	0.7-3.5	15	3.9
QMJ0930	900	3000	41	2.5	＜25	0.74-0.4	1.1-3.5	22	4.5
QMJ1224	1200	2400	36	3.5	＜25	0.74-0.4	1.5-4.7	30	11.5
QMJ1228	1200	2800	36	4.5	＜25	0.74-0.4	1.5-5	55	13
QMJ1245	1200	4500	32	5.5	＜25	0.74-0.4	1.6-5.8	75	13.8
QMJ1530	1500	3000	31	6.8	＜25	0.74-0.4	2.1-7	75	17
QMJ1535	1500	3500	31	7.5	＜25	0.74-0.4	3-8.5	110	17.5
QMJ1545	1500	4500	27	10.5	＜25	0.74-0.4	3.5-8	130	21
QMJ1557	1500	5700	27	15	＜25	0.74-0.4	3.5-10	160	24.7
QMJ1830	1830	3000	26	18	＜25	0.74-0.4	4.2-12	110	28
QMJ1845	1830	4500	26	22	＜25	0.74-0.4	4.8-13	130	35
QMJ1870	1830	7000	26	25	＜25	0.74-0.4	5.5-20	185	36
QMJ2136	2100	3600	24	28.5	＜25	0.74-0.4	15-30	210	41
QMJ2145	2100	4500	24	29.8	＜25	0.74-0.4	18-32	245	45
QMJ2245	2200	4500	21	29.8	＜25	0.74-0.4	20-35	245	48.5
QMJ2265	2200	6500	21	30	＜25	0.74-0.4	24-38	380	52.8
QMJ2270	2200	7000	21	33	＜25	0.74-0.4	26-40	400	54
QMJ2275	2200	7500	25	37	＜25	0.74-0.4	28-42	400	56
QMJ2290	2200	9000	30	37	＜25	0.74-0.4	30-45	475	60
QMJ2430	2400	3000	20.6	33	＜25	0.74-0.4	20-35	380	59
QMJ2445	2400	4500	21	35	＜25	0.74-0.4	20-40	400	65
QMJ2475	2400	7500	19.7	38	＜25	0.74-0.4	20-50	475	80
QMJ2745	2700	4500	19.7	48	＜25	0.74-0.4	20-60	475	102
QMJ2775	2700	7500	19.7	52	＜25	0.74-0.4	20-70	630	125
QMJ3090	3000	9000	18.3	78	＜25	0.74-0.4	28-80	1000	150
QMJ3011	3000	11000	18.3	78	＜25	0.74-0.4	30-80	1250	175
QMJ3012	3000	12000	17.6	78	＜25	0.74-0.4	35-80	1400	185
QMJ3013	3000	13000	17.6	78	＜25	0.74-0.4	38-80	1600	188
QMJ3212	3200	12000	17.6	78	＜25	0.74-0.4	40-90	1600	195
QMJ3213	3200	13000	17.6	78	＜25	0.74-0.4	45-90	1600	205
QMJ3475	3400	7500	16	80	＜25	0.74-0.4	55-100	2800	167
QMJ3510	3500	10000	16	100	＜25	0.74-0.4	60-120	3150	180
QMJ3875	3800	7500	15	120	＜25	0.74-0.4	70-150	3150	230
