Vermiculite Sand Processing Plant

As global construction demands surge and natural sand reserves dwindle, the mining industry is seeking sustainable, high-performance alternatives to meet these demands. One promising solution is vermiculite sand (expanded mineral waste)—a byproduct of vermiculite processing that can be transformed into high-quality construction sand.

We specialize in mining equipment that helps operators maximize their resources. This blog guide will cover:

• What is vermiculite sand, and why is it valuable?
• Step-by-step vermiculite sand processing into construction-grade material
• Complete equipment list for an efficient production line

By the end, you’ll understand how to repurpose mining waste into a profitable, eco-friendly construction material.

What Is Vermiculite Sand (Expanded Mineral Waste)?

Vermiculite sand is a lightweight, thermally exfoliated mineral derived from vermiculite ore waste. When heated between 900 °C and 1000 °C, vermiculite expands into an accordion-like structure, forming a porous, low-density material.

Key Properties of Vermiculite Sand

• Ultra-Lightweight – Bulk density of 60–130 kg/m³ (vs. 1600 kg/m³ for river sand)
• Thermal & Acoustic Insulation – Keeps buildings energy-efficient
• Fire-Resistant – Can withstand 1,200°C+ without melting
• High Water Absorption – Useful for agricultural and plaster applications
• Non-Toxic & pH Neutral – Safe for construction use

Where Does Vermiculite Sand Come From?

• Mining Byproduct: Generated during vermiculite ore processing (major sources: USA, South Africa, China)
• Industrial Waste: Leftover from exfoliation plants (previously discarded)
• Sustainable Alternative: Reduces reliance on degrading river sand reserves

How to Process Vermiculite Sand into Construction-Grade Sand?

Converting raw vermiculite waste into usable construction sand requires specialized processing. Below is a detailed breakdown:

Step 1: Collection & Pre-Screening

• Raw Material Sourcing: Gather vermiculite waste from mining stockpiles or processing plants.
• Pre-Screening: Use trommel screens or vibrating sieves to remove rocks, debris, and oversized impurities.

Equipment Needed:

• Trommel Screen (removes large contaminants)
• Grizzly Screen, vibrating screen (heavy-duty pre-sorting)

Step 2: Crushing & Grinding

• Primary Crushing: A jaw crusher reduces chunks to 20–50mm.
• Secondary Crushing: A hammer mill or cone crusher further refines particles to 1 – 5mm.

Output Sizing:

• Coarse Sand (1–5mm) – Concrete, blocks, masonry
• Fine Sand (0.1–1mm) – Plaster, tile adhesives

Step 3: Washing & Dewatering

• Rotary Scrubber: Removes clay and soluble salts.
• Log Washer (for stubborn impurities): Uses mechanical agitation.
• Sand Washer + Dewatering Screen: Rinses out dust and reduces moisture.

Why Washing Matters?

Improves cement bonding strength

Lowers chloride & sulfate content (prevents corrosion in concrete)

Step 4: Drying (If Needed)

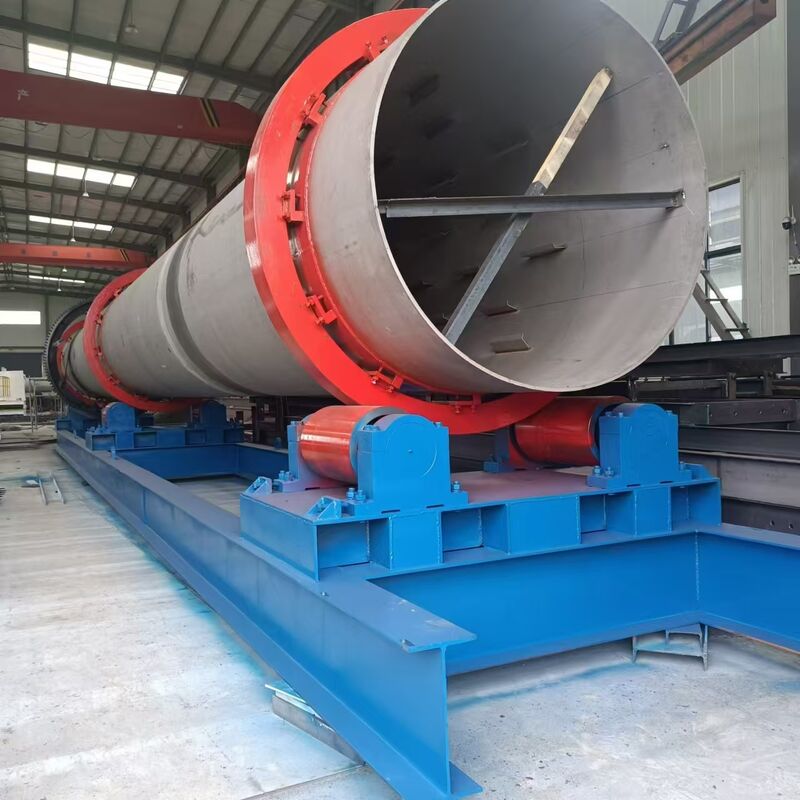

Rotary Dryer: Bulk drying at 200–300°C

Target Moisture: <5% for stability

Step 5: Grading & Classification

• Vibrating Screens: Segregate sand into different size fractions.
• Air Classifier (for high-precision sizing): Ensures uniform particle distribution.
