Place of Origin:
China
Brand Name:
hengyang
Certification:
ISO9001
Model Number:
HYD006
Solid Waste Rotary Dryer
Solid Waste dryer is designed for any garbage, refuse, sludge from a wastewater treatment plant, water supply treatment plant, or air pollution control facility and other discarded materials .Before drying, we also need to sort solid waste into different type.

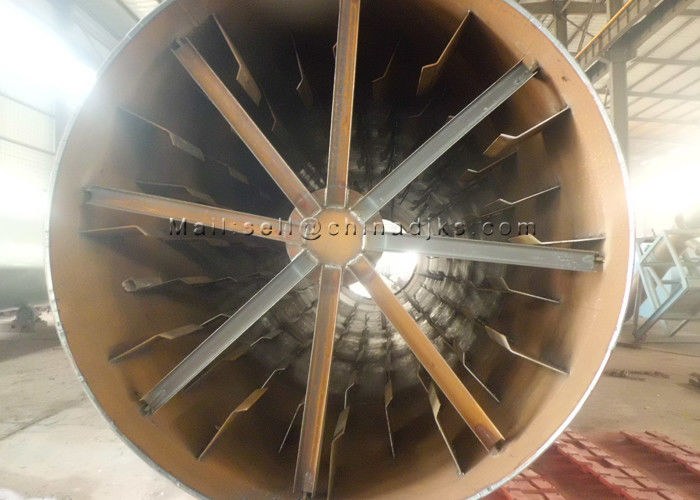

Some of Solid Waste enter into drying unit. With the joint action of positive and negative guiding and lifting boards and rotary drums, the material boiling in the cylinder and fully in touch with hot air until completing the drying process. Material is highly dispersed in the air flow, the total particles surface is effective drying area. Solid Waste in the drying unit moves as “W + S”-type reciprocating trend, the total stroke is 6 times the ordinary dryer.
Solid Waste Rotary Dryer Included:
1. Direct-heated rotary dryer.
2. Indirect- Direct rotary dryer.
3. Indirect rotary dryer.
4. Special type.
Solid Waste Rotary Dryer Application:
Living wastes, Organic wates, Rubbin, Food waste, Sawdust, Vegetable wastes, PVC, Paper, Dung, Manure etc.
Solid Waste Rotary Dryer Features:
1. Rotary dryers are less sensitive to particle size.
2. It can accept the highest flue gasses of any type of dryer.
3. Low maintenance cost; thus economical.
4. It has the greatest capacity than any type of dryer.
Solid Waste Rotary Dryer Technical Details:
| Model |
Processing Capacity |
Input Moisture |
Output Moisture |
Main Motor for Dryer |
Coal Calorific Value |
Evaporation Quantity per ton waste |
| Ø1.2X10M |
1-1.5 t/h |
65±5 % |
<10% |
7.5kw |
>6000 KCAL/KG |
0.61 t |
| Ø1.5X12M |
2-4 t/h |
65±5 % |
<10% |
11kw |
>6000 KCAL/KG |
1.22 t |
| Ø1.5X15M |
2.5-5 t/h |
65±5 % |
<10% |
15kw |
>6000 KCAL/KG |
1.53 t |
| Ø1.5X18M |
5-8 t/h |
65±5 % |
<10% |
15kw |
>6000 KCAL/KG |
1.83 t |
| Ø1.8X18M |
8-12 t /h |
65±5 % |
<10% |
18.5kw |
>6000 KCAL/KG |
3.61 t |
