Product Description

Binocular Rotary Dryer Introduction

Our binocular rotary dryer is developed on the basis of traditional monocular rotary dryer structure, and with significant breakthrough and innovation in technology, it has more advantages over other kinds of dyer. In it, the exchange of materials and heat flow is better and more reasonable, and all its thermal indicators are advanced.

Binocular Rotary Dryer Features

1. It has high heat efficiency, and its energy saving capacity is remarkable.
2. Inside the inner cylinder, materials exchange heat with hot air through radiation, convection and conduction, and in the outer cylinder, their heat exchange is achieved by conduction and convection.
3. Its shortened length facilitates its process layout. Its length is 40% shorter than that of monocular dryer, thus reducing the building area of factory as well as project investment.

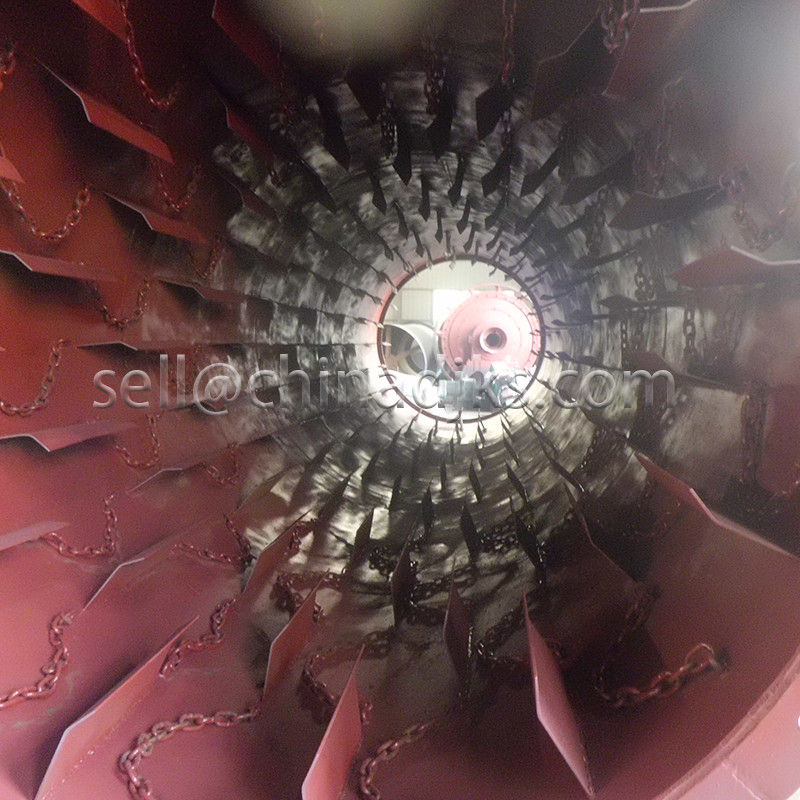

4. A wide variety of material lifting designs make materials and hot air easier to be fully exchanged with each other.

Binocular Rotary Dryer Technical Details

Specification	m	Ф2.0×7m		Ф2.5×7.5m	Ф3.2×8m	Ф3.6×8.5m	Ф4.2×9m
Diameter of outer cylinder	m	2.0		2.5	3.2	3.6	4.2
Length of outer cylinder	m	7		7.5	8	8.5	9
Cylinder volume	m3	21.98		36.8	64.3	86.48	124.6
Rotating speed of cylinder	rpm	4-10		4-10	4-10	4-10	4-10
Original moisture of material	%	8-20		8-20	8-20	8-20	8-20
Final moisture of material	%	≤1		≤1	≤1	≤1	≤1
Max.feeding air temperature	℃	750-900℃		750-900℃	750-900℃	750-900℃	750-900℃
Productivity	T/h	Slag	12-18	22-25	30-38	40-48	55-65
		Pulverized coal	8-10	15-20	25-30	35-40	40-50
		Coal	8-10	13-18	23-28	33-38	40-45
		Yellow sand	15-20	23-28	35-43	40-50	60-70
Motor model		Yr160m-4		Yr132m-4E	Yr132m-4E	Yr160m-4E	Yr160m-4E
Motor power	kw	5.5×2		7.5×2	7.5×4	11×4	15×4
Model of speed reducer		XWD-6		XWD-6	XWD-6	XWD-6	XWD-6
Speed ratio of speed reducer	I	23-29		23-29	23-29	23-29	23-29
