Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-282

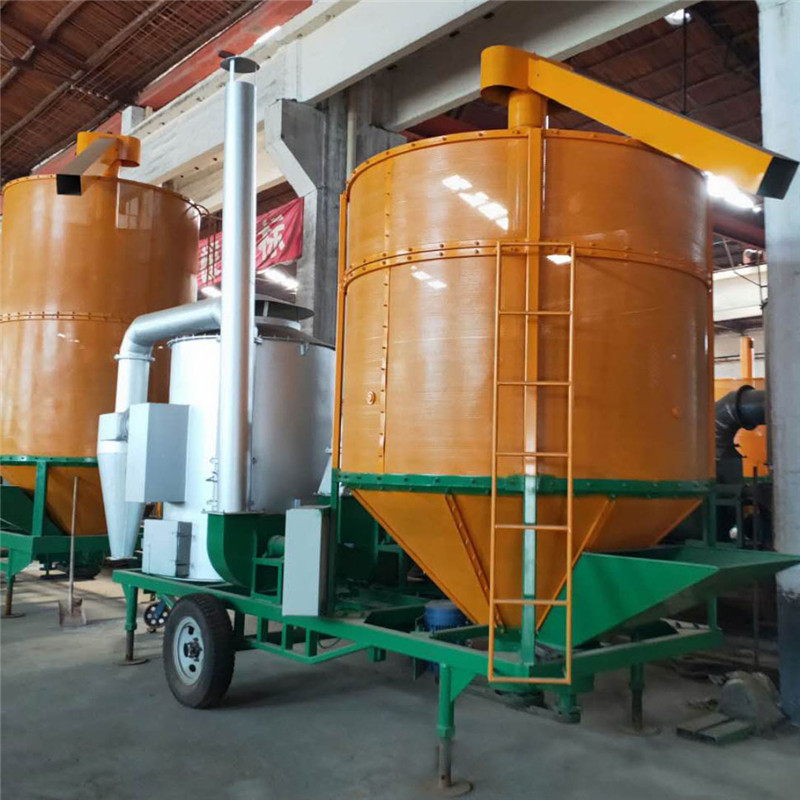

Mobile Green Grain Drying Machine
The grain dryer is an ideal drying equipment for drying grain and grain. It can be used for one machine. Dry rice, rapeseed, soybean, wheat, corn, peanut and other grains can be dried on the same equipment to meet different grain seasons. Drying, drying of feed grain, commercial grain and seed grain can be carried out to improve the utilization rate and reduce the idle time of equipment. The drying equipment is very suitable for use in food processing plants, lexical processing plants, farms, grain stations, grain farmers, cooperatives, grain depots, grain and oil processing plants and other user groups.
Working principle
Movable grain dryer (mobile grain drying equipment) uses hot air as drying medium and adopts cyclic drying technology. The grain is heated and precipitated uniformly, fully and has good quality after drying. The grain dryer uses coal, firewood, straw or rice husk as fuel, which is converted into clean hot air through combustion and heat transfer. The grain dryer is also equipped with an automatic on-line temperature and humidity measuring device, which greatly improves the degree of automation and ensures the quality of grain after drying.
Technical Details:
| Model | HYD-10 | HYD-20 | HYD-30 | HYD-40 | HYD-50 | |
| Silo Volume | 3.8m³ | 6.5m³ | 9.6m³ | 15.6m³ | 18m³ | |
| Dry type | Low temperature hot air and grain Mixed flow cycle | |||||
| Hot air temperature | Paddy:45-60℃;Corn:100-130℃;Wheat:90-110℃ | |||||
| Transport height | 2.7m | 2.9m | 2.9m | 2.95m | 3.55 | |
| Operation height | 3.46m | 3.85m | 4.92m | 6.65m | ||
| Area | 13m2 | 15.5m2 | 16.3m2 | 25m2 | ||
| Oven |
Clean oven Ignition by manual Fuel can be coal,desiel oil,natural gas,etc |
|||||
|
Fuel consumption |
Coal | (Standard conditions)18kg/t | ||||
| Gas | (Standard conditions)7m³/t | |||||
| Diesel oil | (Standard conditions)7.5L/t | |||||
| Total power | 8.5 | 12.9 | 19.4 | 36 | 55 | |
| Daily Production: | 20 t/day | 35 t/day | 50 t/day | 70 t/day | 80t/day | |
| Room temperature | -10-40℃ | |||||
| Feeding time | 8-10 min | 12-16 min | 18-22 min | 22-28 min | 30-40min | |
| Discharging time | 8-10 min | 10-15 min | 15-20 min | 20-25 min | 30-35min | |
|
Precipitation rate (%/h) |
Paddy:1.7-2.5;Corn:3.8-6;Wheat:2.8-4.5 | |||||
| Safety Devices | Thermal relay,Error alarm, Times Switch, Overheat alam | |||||
|
The performance of above parameter and Precipitation rate is for reference value,the actual value will be different due to atmospheric temperature,relative humidity,dry species,hot air temperature and moisture content and drying rate.Daily production is calculated by the condition from25% to 14% moisture. |
||||||
