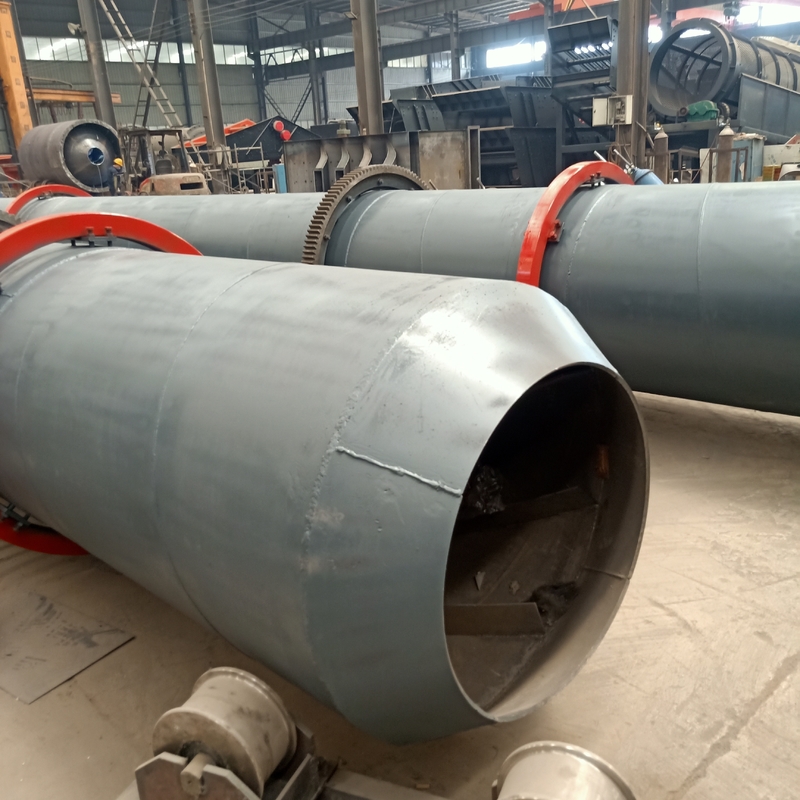

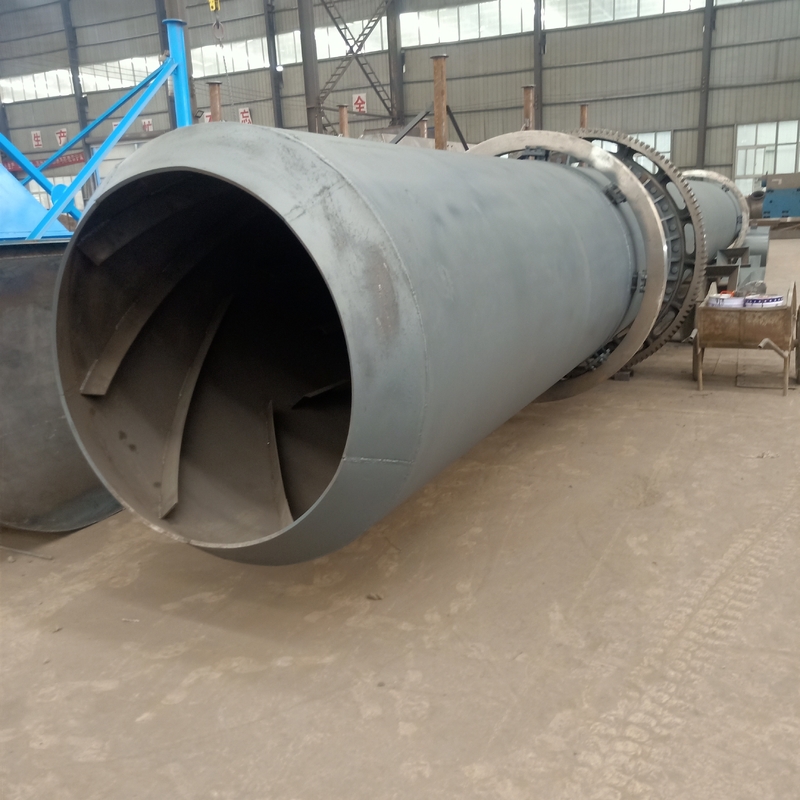

Sawdust Rotary Drum Dryer 34kw For Wood Powder / Wood Chips

Sawdust Rotary Drum Dryer 34kw For Wood Powder / Wood Chips

Sawdust Rotary Drum Dryer

34 kw Sawdust Rotary Drum Dryer

Rotary Drum Dryer For Wood Powder

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-312

Contact Us
Request A Quote
Product Details
Condition:
New
Warranty:
TWO YEARS
After-sales Service Provided:
Engineer Oversea Service
Application:
Drying
Product Name:
Sawdust Rotary Drum Dryer
Usage:
Wood Chips, Wood Powder, Brewer's Grains, Cocoa Residue, Etc
Heating Source:
Biomass, Natural Gas, Propane, Diesel, Coal, Etc
Payment & Shipping Terms
Minimum Order Quantity
1
Price
5200-69120USD/set
Packaging Details
Negotiated
Delivery Time
20-60 days
Payment Terms
T/T
Supply Ability
300Sets/month
Product Description

Hengyang Drying Systems Sawdust Dryer

Sawdust dryer is suitable for drying various waste materials such as sawdust, wood chips, wood shavings, wheat straw, bark, bagasse, pasture grass, etc. After the materials are quickly dried, they can be processed into fuel using molding equipment, which can promote the development of local wood pellet biomass fueling.

Sawdust Drying Systems Working Principle

Sawdust dryers are consist of heating furnace, feeding port, drum, filter drum, conveying pipe, cooling drum and discharging port. Wet materials are continuously sent into the drum through a screw conveyor and then get separated and pushed by the high-speed hot flow. The moisture in wet materials is taken away in this process and then we get powder or pellet dry materials.

Technical Details of coffee grounds dryer:

Model Input(t/h) Output(t/h) Evaporation Capacity(t/h) Initial Moisture(%) Final Moisture(%) Drying Temperature(℃) Total Power(kw) Total Weight(kg) Plant Area (m²)
HYSG1409 1.53 1.08 0.45 40±5 13% (Adjustable) 280±30℃ 34 22000 5m×15m
HYSG1615 2.89 2.03 0.85 45 28000 6m×22m
HYSG2008/3 5.2 3.67 1.53 78 40000 8m×16m
HYSG2010/3 6.63 4.68 1.95 90 45000 8m×18m
HYSG2210/3 7.24 5.11 2.13 105 50000 8m×20m
HYSG2510/3 8.91 6.29 2.62 125 60000 10m×20m
HYSG2512/3 10.5 7.41 3.09 140 68000 10m*24m
HYSG2912/3 12.14 8.57 3.57 155 76000 10m*24m
