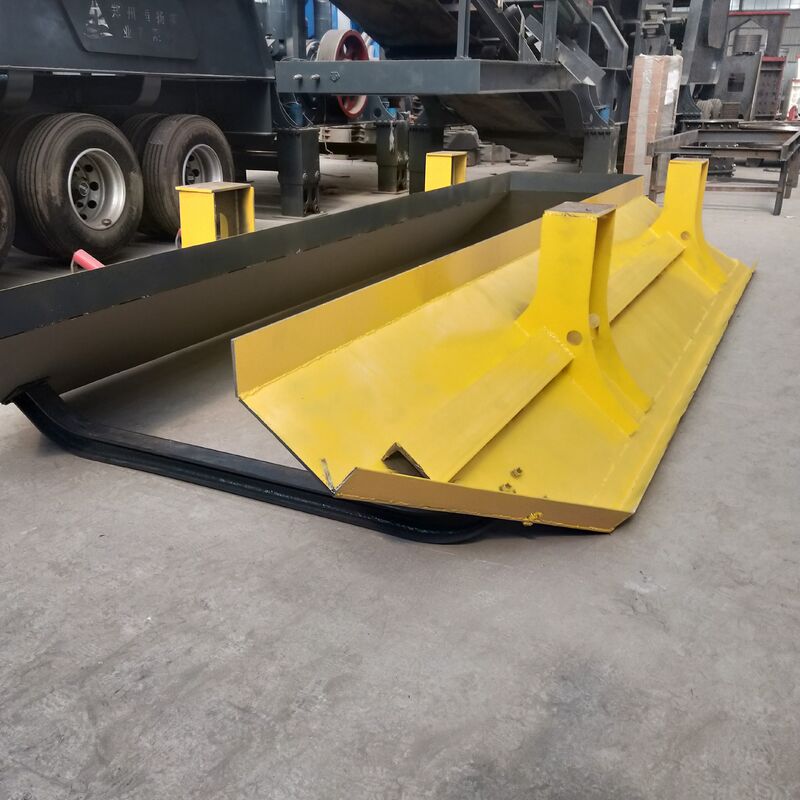

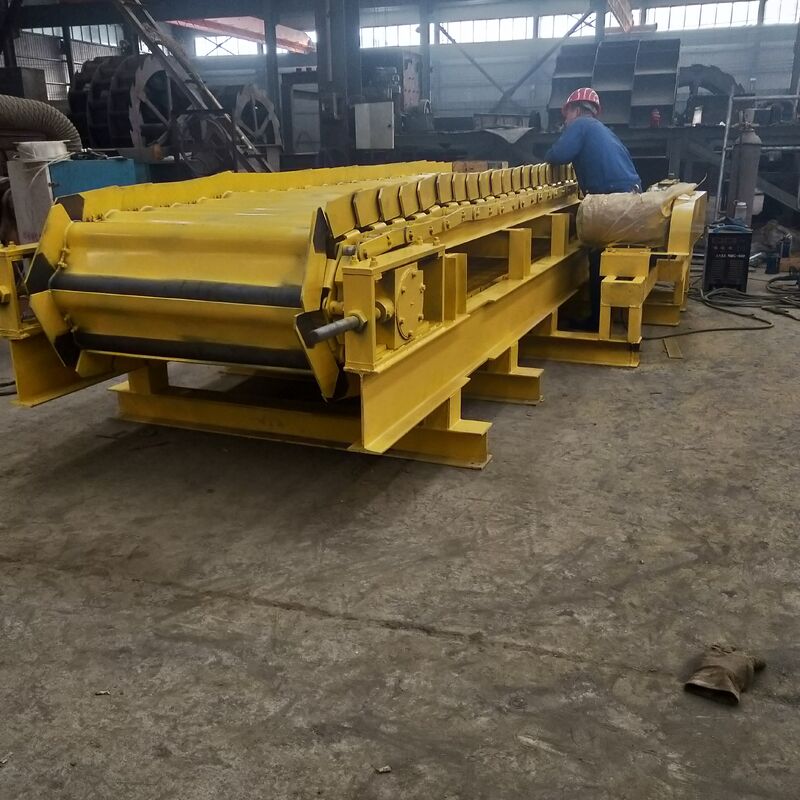

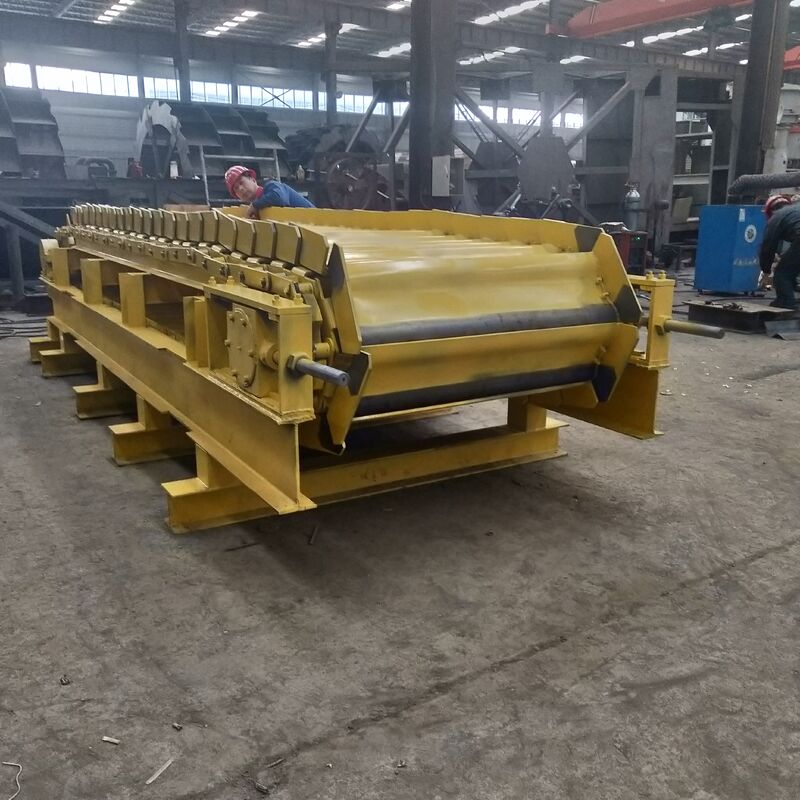

Name: Chain Conveying Feeder
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: C-type Feeder
Price: 8,650.00 USD
Availability: InStock

Home > Products > Feeding & Conveying Machine >

Chain Conveying Feeder

chain feeder conveyor machine

industrial chain conveying feeder

heavy-duty chain feeder with warranty

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

C-type Feeder

Request A Quote

Product Details

Capacity:

50-200t/h

Condition:

New

OEM:

Application:

Transporting Materials

Warranty:

12 Months

Voltage:

Up To Buyer

Payment & Shipping Terms

Minimum Order Quantity

Price

5000-12300USD/set

Packaging Details

Negociated

Delivery Time

15-20 days

Payment Terms

T/T

Supply Ability

300 sets/month

Chain Conveying Feeder

Get Best Price

Contact Now

Product Description

The Chain feeder can feed the block and granular materials uniformly and regularly from the silo into the receiving device when running. The crushing machine can feed continuously and evenly with coarse screening in the gravel production line. Chain Conveying Feeder 0

Quality: Due to high requirements for mechanical quality, raw materials selection, processing,assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment. Service: continuous and efhcient after-service for the customer support. 24 hours service with.

Models	Max Feed Size (mm)	Crushing Capacity (t/h)	Electric Motor Power (KW)	Installation Slope	Weight (kg)	Size of Funnel (mm)	Overall Dimensions (L×W×H) (mm)
LB0835	400	~120	11	5°	3607	800×3500	3110×1800×1600
LB1040	500	~150	15	5°	3980	1000×4000	3850×1950×1630
LB1240	580	~240	18.5	5°	4170	1200×4000	4400×2050×1660
LB1540	580	~280	22	5°	4520	1500×4000	4400×2050×1700
