Name: Modular Chain Plate Conveyor
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: C-type Feeder
Price: 8,650.00 USD
Availability: InStock

Home > Products > Feeding & Conveying Machine >

Modular Chain Plate Conveyor

modular chain plate conveyor system

industrial plate conveyor machine

heavy-duty chain conveyor equipment

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

C-type Feeder

Request A Quote

Product Details

Capacity:

50-200t/h

Condition:

New

OEM:

Application:

Transporting Materials

Warranty:

12 Months

Voltage:

Up To Buyer

Payment & Shipping Terms

Minimum Order Quantity

Price

5000-12300USD/set

Packaging Details

Negociated

Delivery Time

15-20 days

Payment Terms

T/T

Supply Ability

300 sets/month

Chain Conveying Feeder

Get Best Price

Contact Now

Product Description

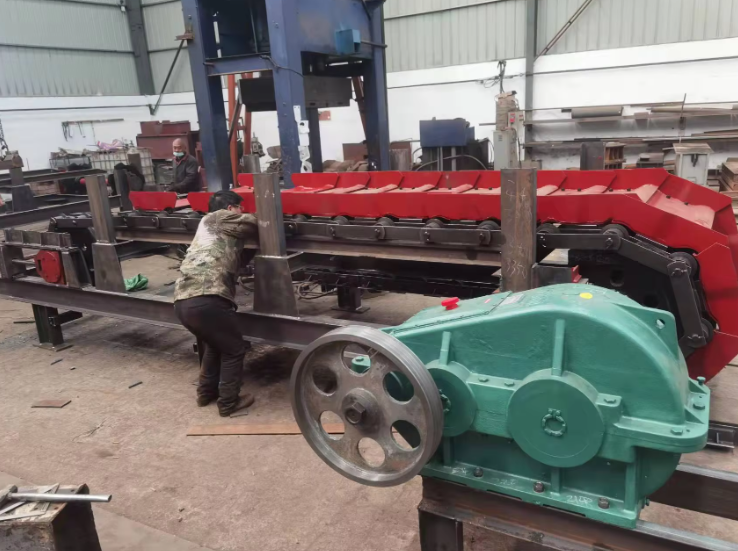

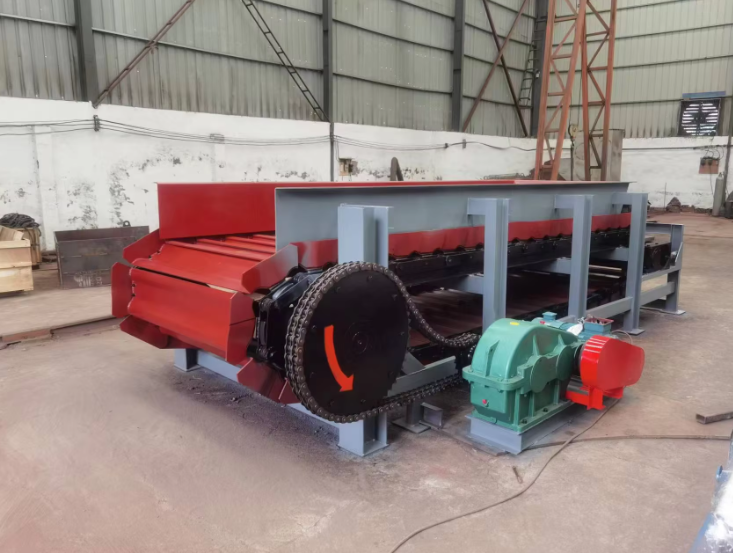

Modular Chain Plate Conveyor is a kind of continuous material conveying machinery, which is used for continuous and even feeding to crusher, conveyor or other mechanical equipment along horizontal or inclined direction, applicable to extra-large and medium-sized mining equipments, production line of large and medium-sized cement plants, and it can work reliably in high temperature and high humidity in bad environment, especially it is more suitable for transporting large, high temperature and sharp materials, and it can work reliably in the open air, humid and bad environment. It can work reliably in open air, wet and harsh environment.

1. Heavy-duty chain plate conveyor: suitable for short-distance transportation of lumpy materials with feed size below 1000mm.
2. Medium chain plate conveyor: it is suitable for short-distance conveying materials with feeding granularity below 400mm, transporting materials with bulk density less than 2400kg/m3, block weight less than 500kg and temperature below 400°C.
3. Light chain plate conveyor: it is suitable for short-distance conveying of lumpy materials with feeding size below 160mm, transporting materials with loose density less than 1200kg/m3, lump weight less than 140kg and temperature below 350°C.

Modular Chain Plate Conveyor 0
