Name: Drag Chain Conveyor
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: B-type Conveyor
Price: 8,650.00 USD
Availability: InStock

Home > Products > Feeding & Conveying Machine >

Drag Chain Conveyor

industrial drag chain conveyor

heavy-duty conveyor chain

material handling drag chain

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

B-type Conveyor

Request A Quote

Product Details

Capacity:

50-700t/h

Condition:

New

OEM:

Application:

Transporting Materials

Warranty:

24 Months

Voltage:

Up To Buyer

Payment & Shipping Terms

Minimum Order Quantity

Price

5000-12300USD/set

Packaging Details

Negociated

Delivery Time

15-20 days

Payment Terms

T/T

Supply Ability

300 sets/month

Chain Conveying Feeder

Get Best Price

Contact Now

Product Description

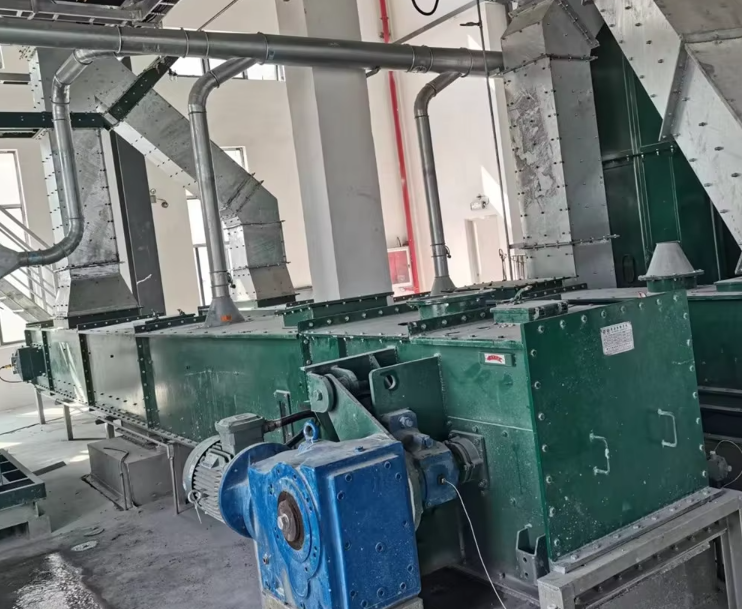

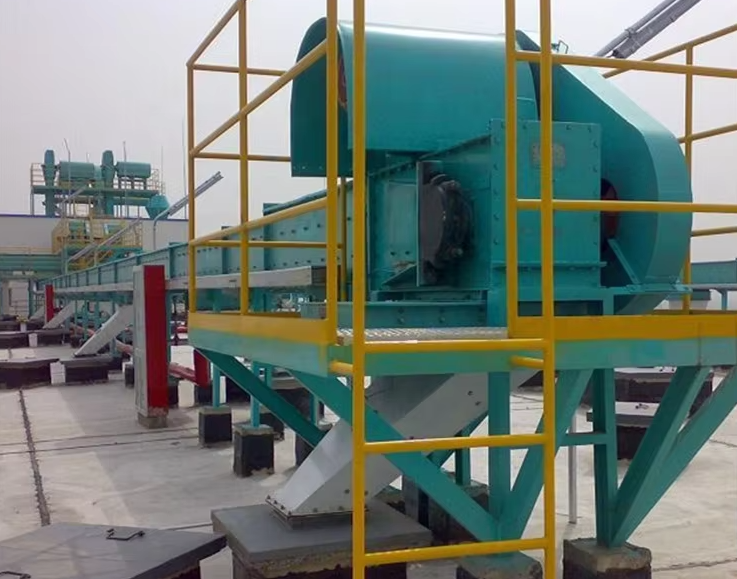

Drag Chain Conveyor is bulk material conveying equipment, which consists of head section with driving device, middle casing, tail section, tension device, as well as scraper chains. MS buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Drag Chain Conveyor 0

Technical Details
Type		MS16	MS20	MS25	MS32	MS40
Trough Width		160	200	250	320	400
Allowed Material Density Range		0.2-2.5t/m³
Max.Conveying Distance		120m
Conveying Capacity	speed m/s	0.16	0.16	0.16	0.16	0.16
	capacity m³/h	15	23	36	59	83
	speed m/s	0.2	0.2	0.2	0.2	0.2
	capacity m³/h	18	29	45	74	104
	speed m/s	0.25	0.25	0.25	0.25	0.25
	capacity m³/h	23	36	56	92	130
	speed m/s	0.32	0.32	0.32	0.32	0.32
	capacity m³/h	29	46	72	118	166
