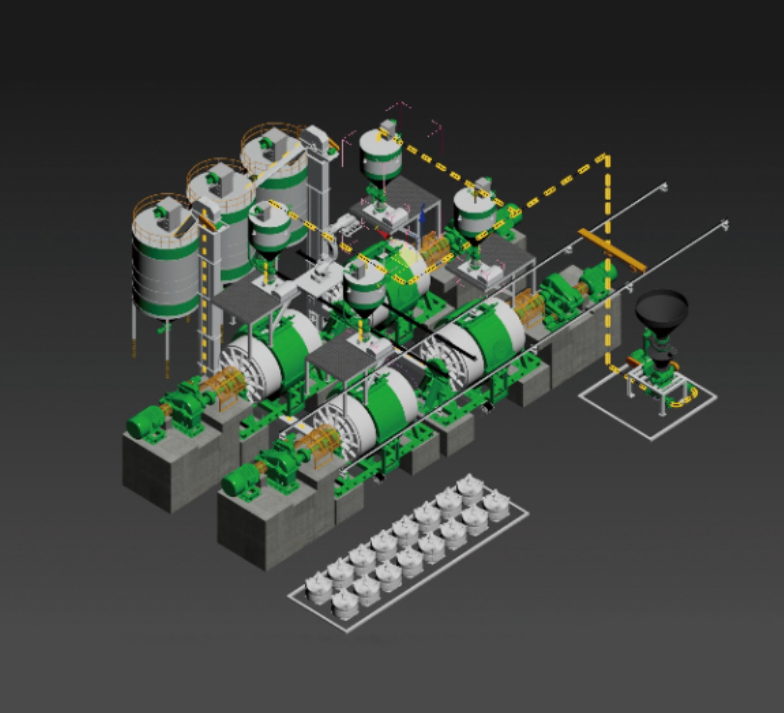

High-intelligence Unmanned Unltra-fine Powder Production Line

Product Details

OEM:

Voltage:

Up To Buyer

Automatic:

Full-auto

Capacity:

1-20t/h

Output Size:

2500-3000mesh

Payment & Shipping Terms

Minimum Order Quantity

Price

12000-55700USD/set

Packaging Details

Negociated

Delivery Time

25-40 days

Payment Terms

T/T

Supply Ability

30sets/month

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

Get Best Price

Nonmetal Rotary TROMMEL Screen for material separation processes

Get Best Price

Contact Now

Product Description

The high-inteligent unmanned batch grinding technology is an advanced grinding process that combines the characteristics of automation, intlli-
product quality.
Intermittent operation: It is suitable forsmall-batch and multi-variety production,with low energy consumption.
The raw materials are transported into the intermittent grinder for grinding through a quantitative metering and automatic conveying
device. After the grinding is completed. the grinding door of the grinder is automaticaly replaced with a material throwing grate plate formaterial throwing. The thrown materials are sent to the finished product storage bin for storage through the conveying system.
The automatic process of the mill and the mill door sieve:
The grinding door opens automatically--It is replaced with a grinding door screen and tightened automatically--The
grinding mill discharges materials--After the material discharge is completed--The grinding door screen is automaticallyremoved--Automatic feeding is carried out After the feeding is completed, the grinding door is automatically replaced and tightened automatically -- It enters the grinding state. High-intelligence Unmanned Unltra-fine Powder Production Line 0

Application

High-intelligence Unmanned Unltra-fine Powder Production Line 1

Technical Details

Model	1000	2000	3000	5000	8000	10000	15000	20000
Loading Capacity (t)	1-2	2-3	3-5	3-6	5-8	8-13	11-18	15-24
Rotary Speed (r/min)	22.6	21.4	20.6	19.8	19.1	17.9	16.8	16.4
Motor Power (kw)	75	90	132	185	220	320	630	800
Fineness (um)	1-5	1-5	1-5	1-5	1-5	1-5	1-5	1-5
Reference Dimensions	JXM2021	JXM2225	JXM2431	JXM2635	JXM2840	JXM3245	JXM3650	JXM3860

High-intelligence Unmanned Unltra-fine Powder Production Line 2
