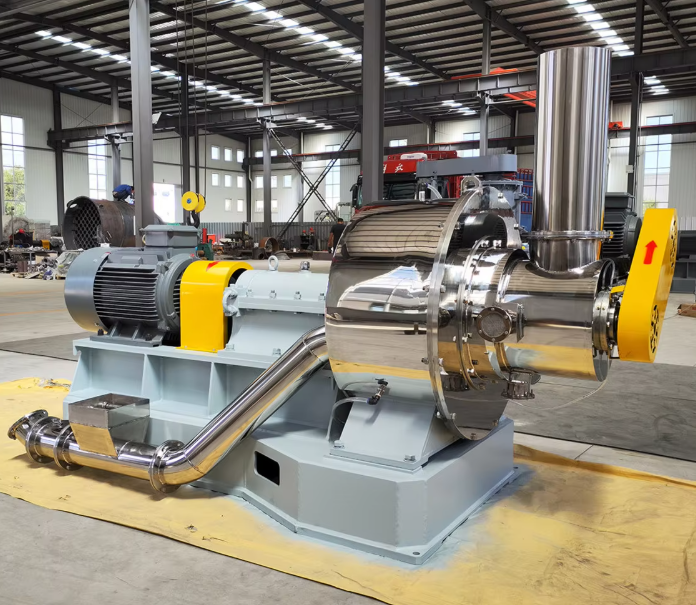

Name: Supperfine Hammer Mill for Different Products
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: hammer mill
Price: 562,000.00 USD
Availability: InStock

Home > Products > Micron Powder Grinding Machine >

Supperfine Hammer Mill for Different Products

Supperfine Hammer Mill for powder grinding

Micron Powder Grinding Machine with hammer mill

Supperfine Hammer Mill for various products

Place of Origin:

China

Brand Name:

hengyang

Certification:

ISO9001

Model Number:

hammer mill

Request A Quote

Product Details

OEM:

Condition:

New

Fineness:

100-3000mesh

Voltage:

Up To Clients

Color:

Customize

Warranty:

24 Months

Design:

Provide

Payment & Shipping Terms

Minimum Order Quantity

Price

335000-789000

Packaging Details

negociated

Delivery Time

30-50 days

Supply Ability

20 sets/month

Automatic Talc Powder Production Line

Get Best Price

Gypsum Grinding Powder Production Line

Get Best Price

Ultra-fine Talcum Powder Production Line

Get Best Price

Talcum Powder Production Line

Get Best Price

Contact Now

Product Description

Superfine Hammer mill is developed and optimized based on the similar domestic and foreign products with our practical experience,the multifunction equipment is very suitable for grinding,classifying,shaping and depolymerizing the materials with Mohs’ hardness below 4 degree.

Can be connected with air classifier consisting of production line for protein separating and extracting from agricultural product,for example:pea protein,wheat protein.

Heat-sensitive,inflammable and explosive materials can be ground with inert gases, which can be cycle use.

Material feed into the grinding chamber by a dosing feeder,they are impacted,sheared and ground by high speed rotating unit and stator equipped with grinding tooth,the powdered material enters into the classifying area,under the action of centrifugal force from classifying wheel inside of impact mill and draught fan,the qualified powder is collected by the cyclone and bag filter,the oversize powder is continued to grinding.

Features:

1.This machine is a horizontal-shaft reflective mill, which can complete the two processing procedures of fine grinding and powder sorting at the same time. The mill is composed of a movable disk and a ring gear, which rotates at a high speed through a special shaped movable disk. It is repeatedly squeezed, collided, and sheared between the movable disk and the static gear ring to achieve crushing. The material is transported into the crushing cavity by the quantitative feeding system, and the crushed material is driven by the airflow into the classification area. Qualified materials are collected by cyclones and dust collectors, and unqualified materials are returned to the grinding area for grinding.

2.The machine has compact and reasonable structure, small size, low energy consumption, high efficiency, stable rotation, low noise, reliable sealing, no dust pollution, simple installation, easy disassembly and repair, and convenient replacement of damaged parts

3. The equipment adopts the advantages of domestic and foreign dry-process mechanical pulverizers, and can be cooled by large air volume or water jacket according to needs to reduce the heat of smashing and prevent the defects of material particles sticking to the wall and sticking to the crushing disk surface.

4.The crushing and grading integrated machine can dispense the materials that meet the fineness requirements in time to avoid over crushing and narrow the particle size distribution of the materials.

5. It is suitable for processing a variety of materials in various industries, and the particle size can be adjusted arbitrarily without stopping the machine. Product granularity is uniform. 6. This machine is widely used, suitable for dry materials with Mohs hardness less than 5 and water content less than 20% can be crushed by this machine. 7.For agglomerated materials, it has a good dispersing function, with automatic slag discharge, and the materials that are not easily crushed can be automatically separated and discharged.

Application:

Technical Details:

Model	CJ-60	CJ-80	CJ-100	CJ-120	CJ-140
Capacity (kg/h)	100-1200	400-2000	500-4000	800-6000	1200-10000
Input size (mm)	≤15	≤15	≤15	≤15	≤15
Output size (μm)	2-180	2-180	2-180	2-180	2-180
Total installation power (KW)	22-45	45-55	75-90	110-160	200-250
