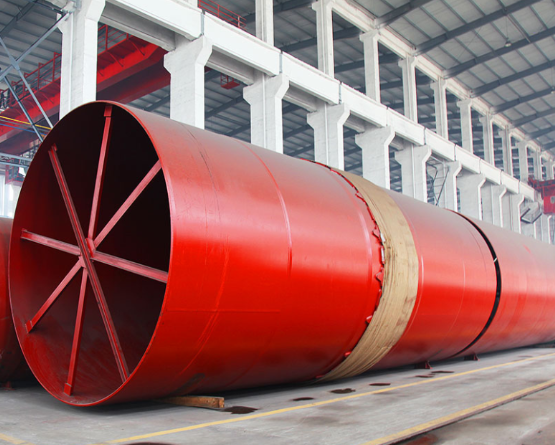

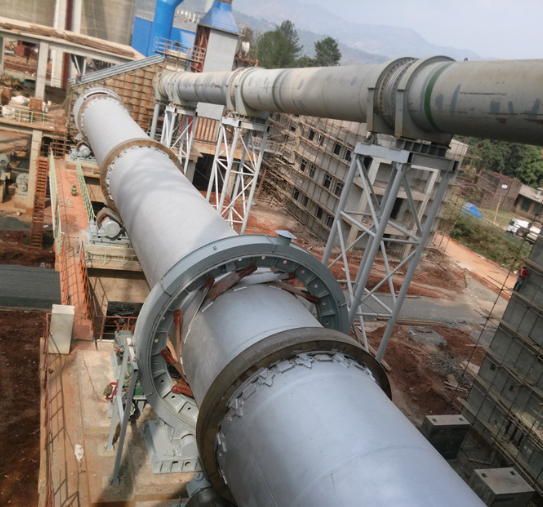

5.2x118m Rotary Kiln Used for Nonferrous Metallurgical Industry

This series of rotary kiln is the large-size advanced international calcining kiln and furnace which is developed by our company and many scientific research institutes such as Beijing General Research Institute of Mining and Metallurgy, Changsha Research Institute of Mining and Metallurgy, Suzhou Sinoma Research Institute of Non-metallic Mining Industry, etc. Compared with the rotary kiln with the same specification made by the traditional technology, this series of rotary kiln can make the production capacity increase by 30%, make the heat consumption reduce by 40% and make the discharged flue gas temperature <250℃, so it is convenient for collecting dust and meeting the modern environment protection needs about energy saving and consumption reducing. This rotary kiln is widely used for extracting nickel from laterite, calcining the activated limestone, oxidized pellet, magnesium oxide, aluminum oxide, titanium dioxide, etc.

Technical Parameters

1. Specification: Φ5.2x118m

2. Capacity: 80-90t/d

3. Slope of kiln shell: 3.5%

4. No. of support: 5

5. Type of thrust roller: hydraulic

6. Rotary speed of kiln

    main driving: 0.2-1.233r/min

    auxiliary driving: 7.82r/h

7. Main driving

    Motor-model: YSNP450L1-6

               rated power: 355x2KW

               speed regulation range: 160-980r/min

               rated voltage: 380V

    Reducer-model: P320W-90

               total speed ratio: 90

8. Auxiliary driving

    Motor-model: Y225S-4

               rated power: 37x2kw

               rated rotaing speed: 1480r/min

               rated voltage: 380v

    Reducer-model: YNL305-14

               total speed ratio: 14

9. Total wight (excluding refractory brick): 1650t

Scope of Supply

Including main driving device, auxiliary driving device, girth gear and pinion, shaft and bearing, gear cover, shell sections, kiln outlet cold air cover, kiln ouelt guard plate and bolt & nut, tyre, supporting device, hydraulic thrust roller, thrust rooler hydraulic station, kiln outlet sealing device, kiln inlet sealing device, kiln outlet cooling air duct, reducer lubrication system, feed cover, discharge cover, installation tool, instruments, electric control cabinet ect.
