A. Summary of cement plant equipment:

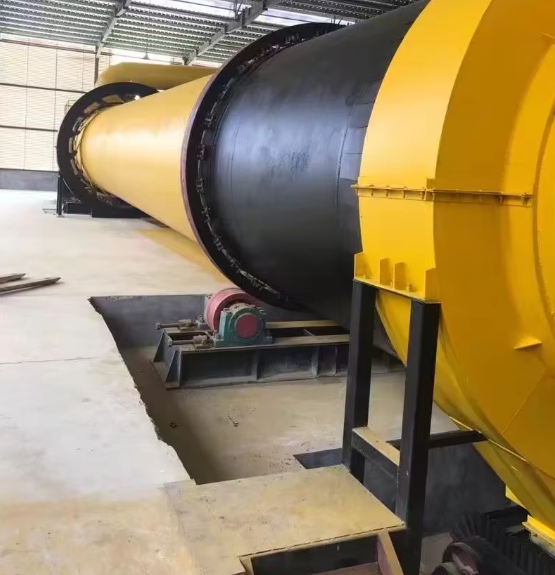

1. The production method is dry process. A rotary kiln(φ3.5×54m) production line with five-stage cyclone pre-heater and decomposition furnace will be adopted.
2. Production scale and capacity
The production capacity is 1500t/d for clinker, while 500,000t/a for Portland cement when mixed with gypsum.
3. Cement types
The technology and equipment adopted can produce 32.5MP and 42.5MP types of cement in accordance with Chinese Standard GB175-1999. They can be adjusted according to market demand.
4. Raw materials properties chemical composition
|
Name
|
L.O.I
|
SiO2
|
Al2O3
|
Fe2O3
|
CaO
|
Mgo
|
K2O
|
Na2O
|
SO3
|
Cl-
|
Water
content
|
|
Limestone
|
39.27
|
7.17
|
2.93
|
1.25
|
46.94
|
1.03
|
0.13
|
0.23
|
|
0.009
|
0.45
|
|
Shale
|
21.89
|
36.14
|
10.39
|
3.27
|
22.03
|
0.8
|
0.99
|
0.33
|
|
0.015
|
0.46
|
|
Silica
|
0.10
|
95.5
|
1.00
|
0.20
|
0.90
|
0.50
|
|
|
|
|
|
|
Gypsum
|
|
1.40
|
0.60
|
0.20
|
30.52
|
0.05
|
0.10
|
0.10
|
47.10
|
|
18.70
|
|
iron
|
11.5
|
30.56
|
22.12
|
26.91
|
1.12
|
|
|
|
|
|
|
5. Fuel
The technical property of mazut:Min. value is ≥9000 kcal/kg(37620kJ/kg)
New five-stage cyclone pre-heater system, high efficiency air girder grate cooler, multi-passage pulverized coal burner, heat temperature fan, electrical dust collector, as well as chain-board elevator, chain conveyor adopted in this cement plant equipment can ensure that the technology is advanced compared to other production lines with the same scale.
6. Main scope of the cement plant equipment:
a. Mechanical Equipment of the cement plant :
|
1.Limestone crushing & conveying
|
|
2..Clay crushing & conveying
|
|
3.Clay & iron powder pre-homogenization pile
|
|
4.Limestone pre-homogenization pile
|
|
5.Raw material dosing station
|
|
6.Raw material grinding & exhaust gas treatment
|
|
7.Raw meal homogenization silo & feeding kiln
|
|
8.kiln outlet
|
|
9.Rotary kiln & triple air duct
|
|
10.Kiln inlet & clinker conveying
|
|
11.Raw coal crushing & conveying
|
|
12.Raw coal pre-homogenization pile & conveying
|
|
13.Coal powder preparation & conveying
|
|
14.Clinker, gypsum storage & dosing & conveying
|
|
15.Gypsum crushing & conveying
|
|
16.Cement grinding & conveying
|
|
17.Cement storage & bulk loading
|
|
18.Cement packing & conveying
|
|
19.Chemical laboratory equipment
|
b.Electrical & automation of cement plant
7. The main equipment for cement making machinery:
a. rotary calcining kiln b. vertical roller mill c. air swept coal mill
d. cement ball mill e. crusher f. Conveyor
8. The packing of our cement making equipment:
B. Key benefits of our services for cement plant equipment
Single source for complete engineering, procurement and construction know-how Full life-cycle support, from initial raw material investigation to final commissioning
Full integration and interconnection of products, including all auxiliary equipment Shortest time to full production
Single source for all service requirements Expertise and know-how to limit project risk Reliable, energy-efficient technologies
